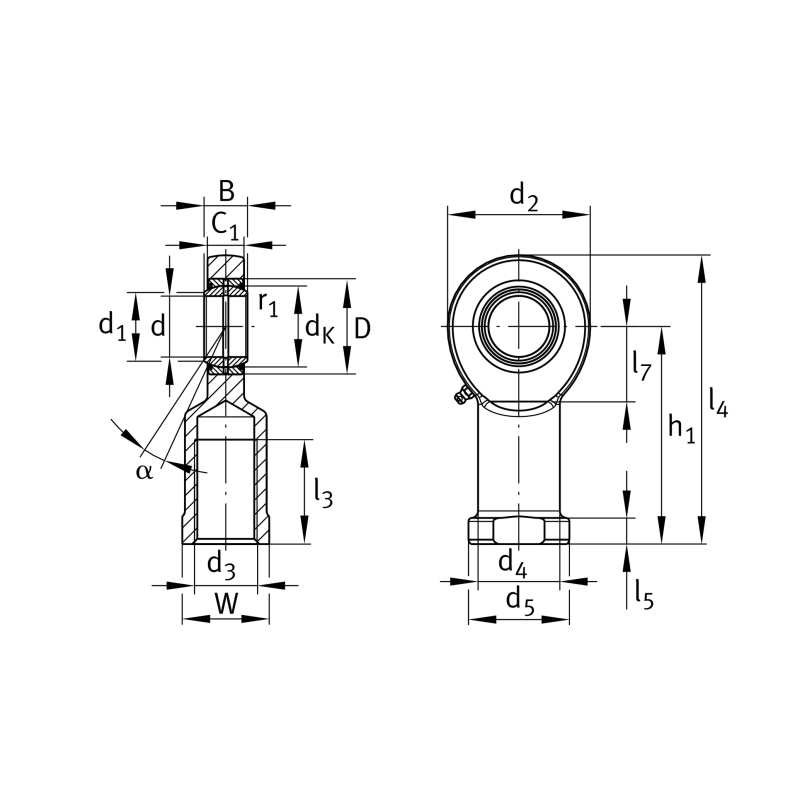

| Bore diameter bearing | d | 35 | mm |
| Width inner ring | B | 25 | mm |
| Basic static load rating, radial | C0r | 159,000 |
| Outside diameter bearing | D | 55 | mm |
| Basic dynamic load rating, radial | Cr | 79,900 | |
| Radialluft | Gr | 0,037 - 0,1 |
| Ball diameter | dK | 47 | mm |
| Outer eye diameter | d2 | 82 | mm |
| Shank diameter | d4 | 47 | mm |
| Tilt angle | α | 6 | ° |
| Total length internal thread head | l4 | 166 | mm |
| Distance drilling with/shaft start | l7 | 42 | mm |
| Width of the rod end | C1 | 21 | mm |
| Width Across Flat | W | 50 | mm |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Outer flange diameter inner ring | d1 | 39,70 | mm |
| Thread size | d3 | M36x3 | |
| Shank Length Internal thread head | h1 | 125 | mm |
| Thread length Internal thread | l3 | 60 | mm |
| length rod end shank | l5 | 15 | mm |
| Shank diameter, large | d5 | 58 | mm |
| Edge Spacing | r1smin | 0,60 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Hersteller | Teilenummer |
|---|---|
| Askubal | EJ35-2RS |
| Hung | GK35LS |
| SKF | SI35-ES (SKF) |
| SKF | SI35 ES-2RS (SKF) |
