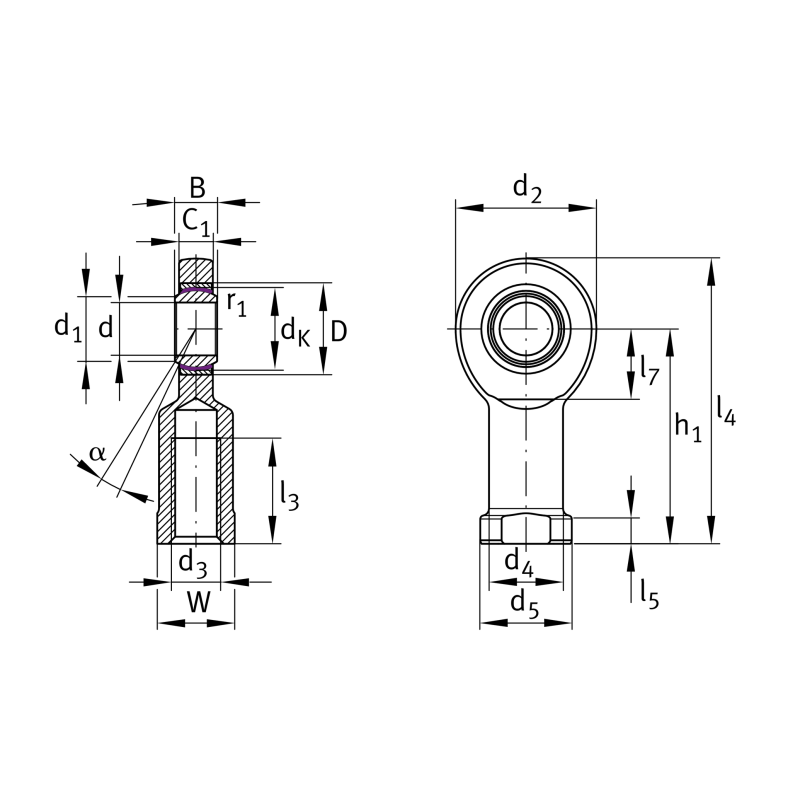

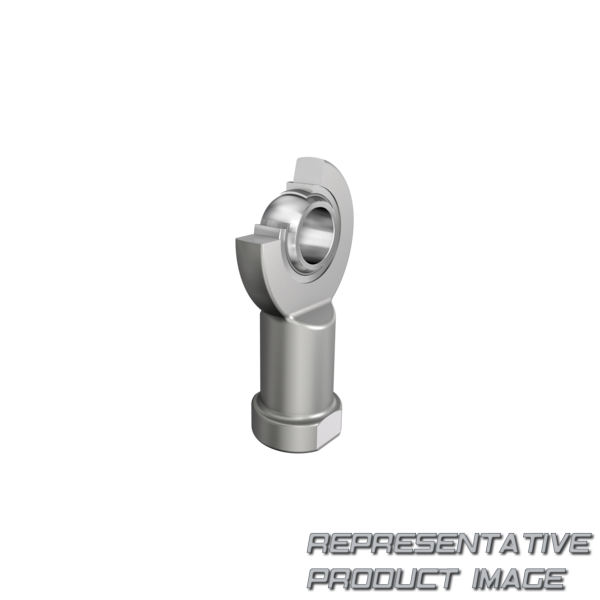

| Bore diameter bearing | d | 8 | mm |
| Width inner ring | B | 8 | mm |
| Basic static load rating, radial | C0r | 16,000 |
| Outside diameter bearing | D | 16 | mm |
| Basic dynamic load rating, radial | Cr | 5,850 |
| Edge Spacing | r1smin | 0,30 | mm |
| Ball diameter | dK | 13 | mm |
| Outer eye diameter | d2 | 24 | mm |
| Shank diameter | d4 | 12,50 | mm |
| Width of the rod end | C1 | 6 | mm |
| Thread length Internal thread | l3 | 15 | mm |
| length rod end shank | l5 | 5 | mm |
| Shank diameter, large | d5 | 16 | mm |
| Radialluft | Gr | 0 - 0,032 | |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Outer flange diameter inner ring | d1 | 10,20 | mm |
| Thread size | d3 | M8 | |
| Shank Length Internal thread head | h1 | 36 | mm |
| Tilt angle | α | 15 | ° |
| Total length internal thread head | l4 | 48 | mm |
| Distance drilling with/shaft start | l7 | 14 | mm |
| Width Across Flat | W | 14 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Hersteller | Teilenummer |
|---|---|
| Durbal | EF08-20-502 (DURBAL) |
| SKF | SIL8 C (SKF) |
