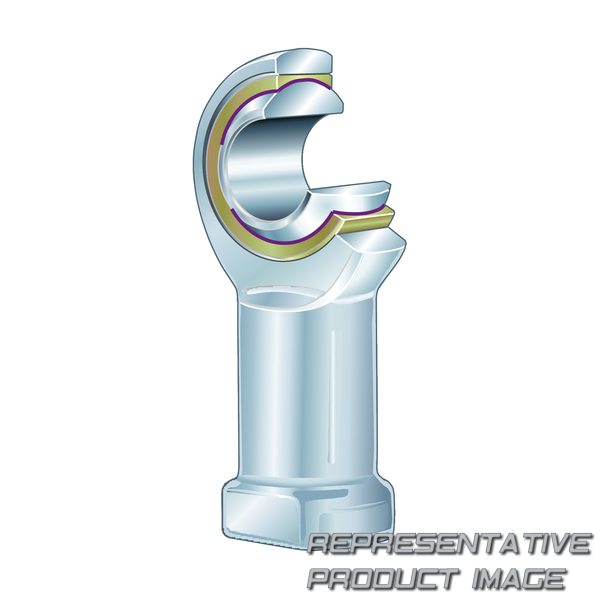

INA GIKPR10-PW

0066353770000

30,76 € ~~35,34 €~~ -12%

15 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

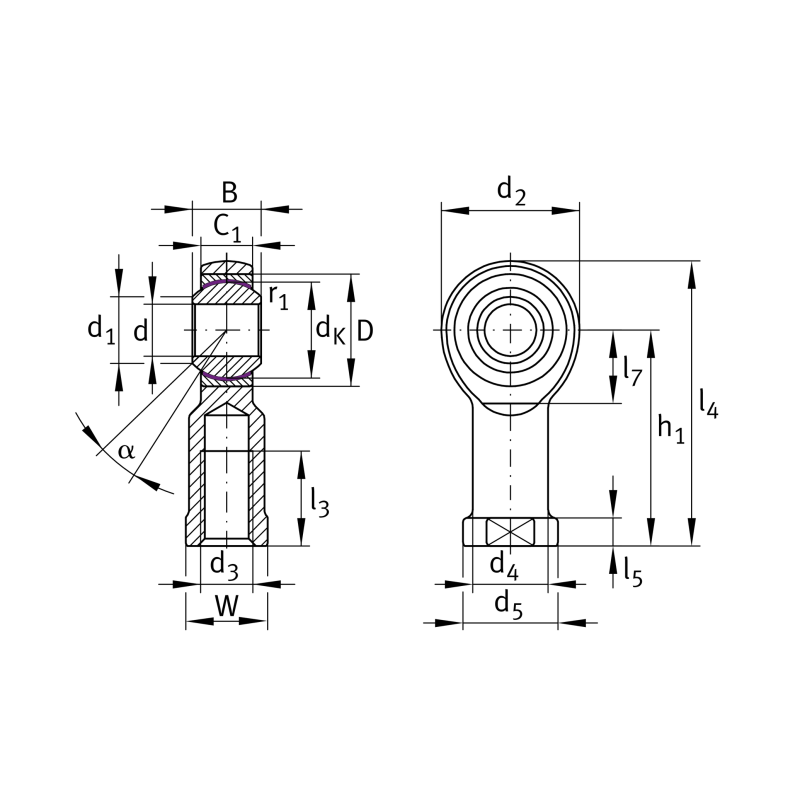

Technische Daten

Gewicht	80g

Bore diameter bearing	d	10	mm
Width inner ring	B	14	mm
Basic static load rating, radial	C_0r	18,500

Outside diameter bearing	D	22	mm
Basic dynamic load rating, radial	C_r	18,100

Edge Spacing	r_1smin	0,30	mm

Ball diameter	d_K	19,05	mm
Outer eye diameter	d₂	28	mm
Shank diameter	d₄	15	mm
Width of the rod end	C₁	10,50	mm
Thread length Internal thread	l₃	20	mm
length rod end shank	l₅	6,50	mm
Shank diameter, large	d₅	19	mm
Radialluft	G_r	0 - 0,035
Bore diameter bearing, tolerance	d_T	H7

Outer flange diameter inner ring	d₁	12,90	mm
Thread size	d₃	M10x1,25
Shank Length Internal thread head	h₁	43	mm
Tilt angle	α	13	°
Total length internal thread head	l₄	57	mm
Distance drilling with/shaft start	l₇	15	mm
Width Across Flat	W	17	mm
Bore diameter bearing, upper tolerance	d_OT	0,02	mm
Width inner ring, lower tolerance	B_UT	-0,12	mm
