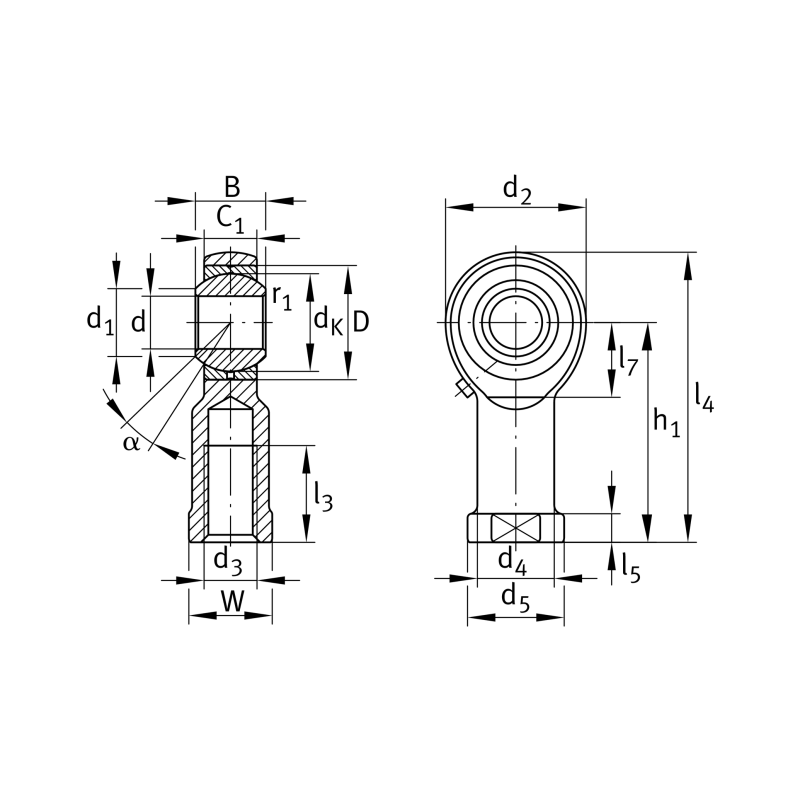

| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Bore diameter bearing, upper tolerance | dOT | 0,02 | mm |
| Edge Spacing | r1smin | 0,30 | mm |
| Shank diameter, large | d5 | 16 | mm |
| length rod end shank | l5 | 5 | mm |
| Thread length Internal thread | l3 | 16 | mm |
| Shank Length Internal thread head | h1 | 36 | mm |
| Thread size | d3 | M8 | |
| Outer flange diameter inner ring | d1 | 10,30 | mm |
| Bore diameter bearing, tolerance | dT | H7 | |
| Width Across Flat | W | 14 | mm |
| Width of the rod end | C1 | 9 | mm |
| Distance drilling with/shaft start | l7 | 13 | mm |
| Total length internal thread head | l4 | 48 | mm |
| Tilt angle | α | 14 | ° |
| Shank diameter | d4 | 12,50 | mm |
| Outer eye diameter | d2 | 24 | mm |
| Ball diameter | dK | 15,88 | mm |
| Radialluft | Gr | 0 - 0,035 | |
| Basic dynamic load rating, radial | Cr | 7,200 | |
| Outside diameter bearing | D | 19 | mm |
| Basic static load rating, radial | C0r | 13,100 | |
| Width inner ring | B | 12 | mm |
| Bore diameter bearing | d | 8 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | SILKAC8-M (SKF) |
