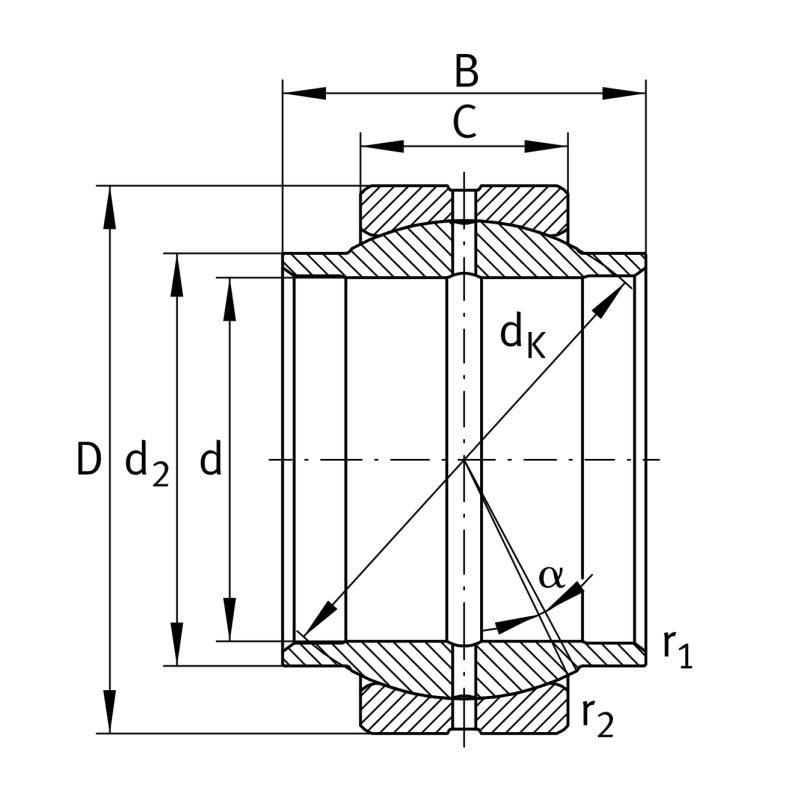

| Width inner ring, lower tolerance | BUT | -0,25 | mm |
| Outside diameter, lower tolerance | Do UT | -0,01 | mm |
| Edge Spacing | r1smin | 1 | mm |
| Ball diameter | dK | 66 | mm |
| Radialluft | Gr | 0,06 - 0,12 | |
| Bore diameter bearing, upper tolerance | dOT | 0,03 | mm |
| Tilt angle | α | 4 | ° |
| Width Outer ring | C | 28 | mm |

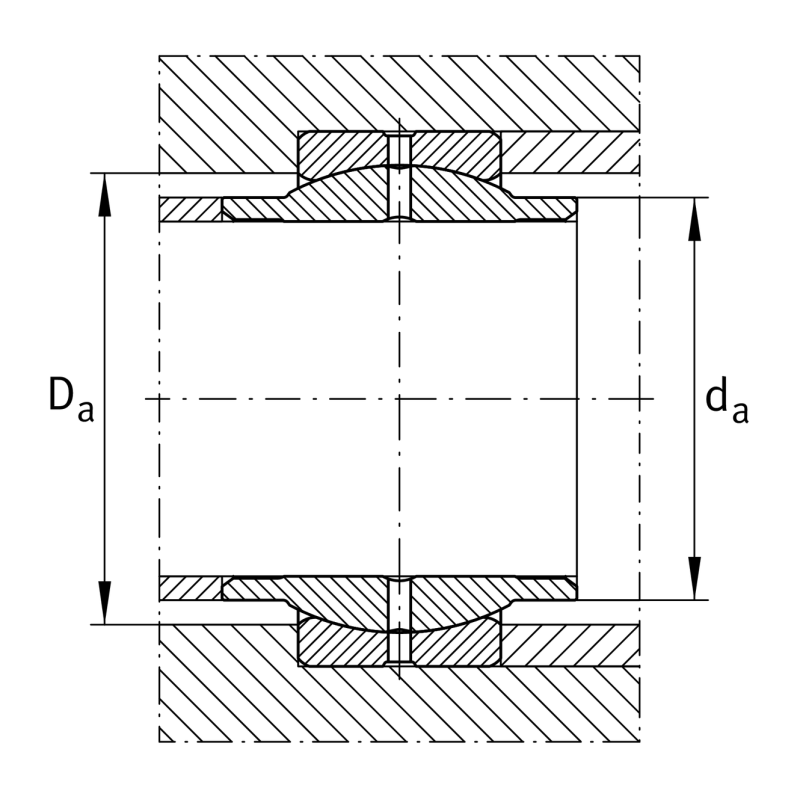

| Connection measure Inner ring | da max | 57 | mm |
| Basic static load rating, radial | C0r | 782,000 | |
| Width inner ring | B | 50 | mm |
| Bore diameter bearing | d | 50 | mm |
| Basic dynamic load rating, radial | Cr | 203,000 | |
| Outside diameter bearing | D | 75 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | GEG50 ES (SKF) |
