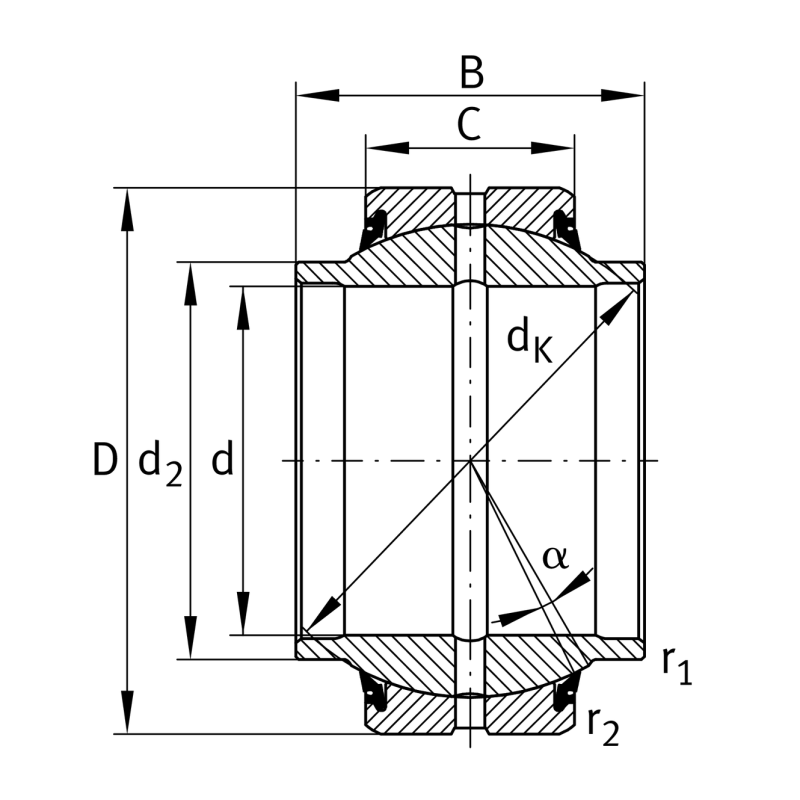

| Bore diameter bearing | d | 50 | mm |
| Width inner ring | B | 43 | mm |
| Basic static load rating, radial | C0r | 690,000 |
| Outside diameter bearing | D | 75 | mm |
| Basic dynamic load rating, radial | Cr | 179,000 |

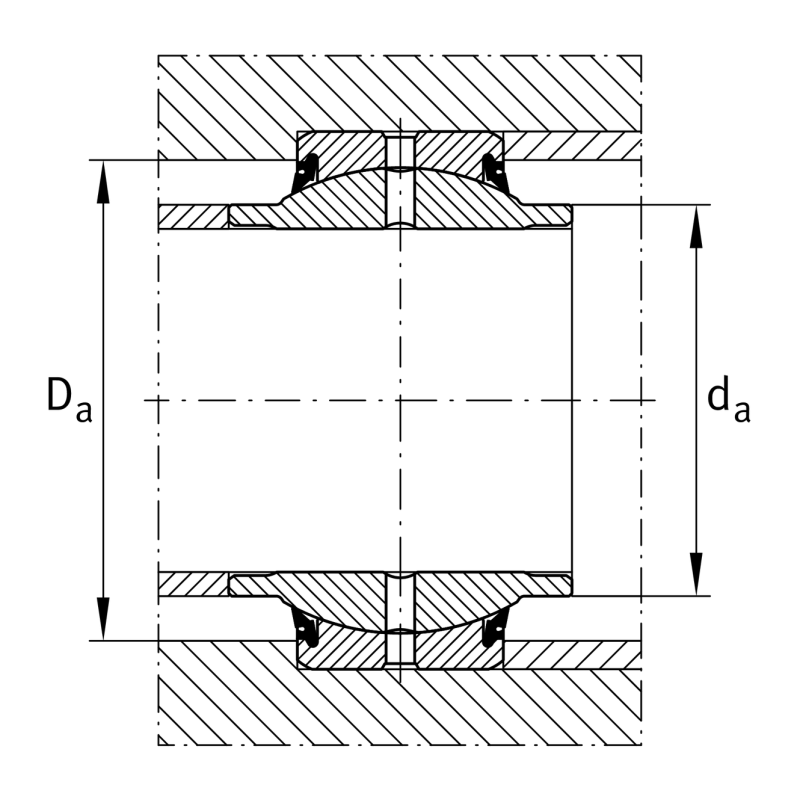

| Connection measure Inner ring | da max | 56,50 | mm |
| Width Outer ring | C | 28 | mm |
| Tilt angle | α | 3 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Width inner ring, upper tolerance | BOT | 0,30 | mm |
| Width inner ring, lower tolerance | BUT | -0,30 | mm |
| Ball diameter | dK | 66 | mm |
| Edge Spacing | r1smin | 1 | mm |
| Outside diameter, lower tolerance | Do UT | -0,01 | mm |
| Radialluft | Gr | 0,06 - 0,12 |
| Hersteller | Teilenummer |
|---|---|
| Elges | GE50HO-2RS |
| WSW Wälzlager | GEEM50ES-2RS |
| SKF | GEM50ESX-2LS |
| RBC | MB50-ESS |
| SKF | GEM50 ES-2RS (SKF) |
