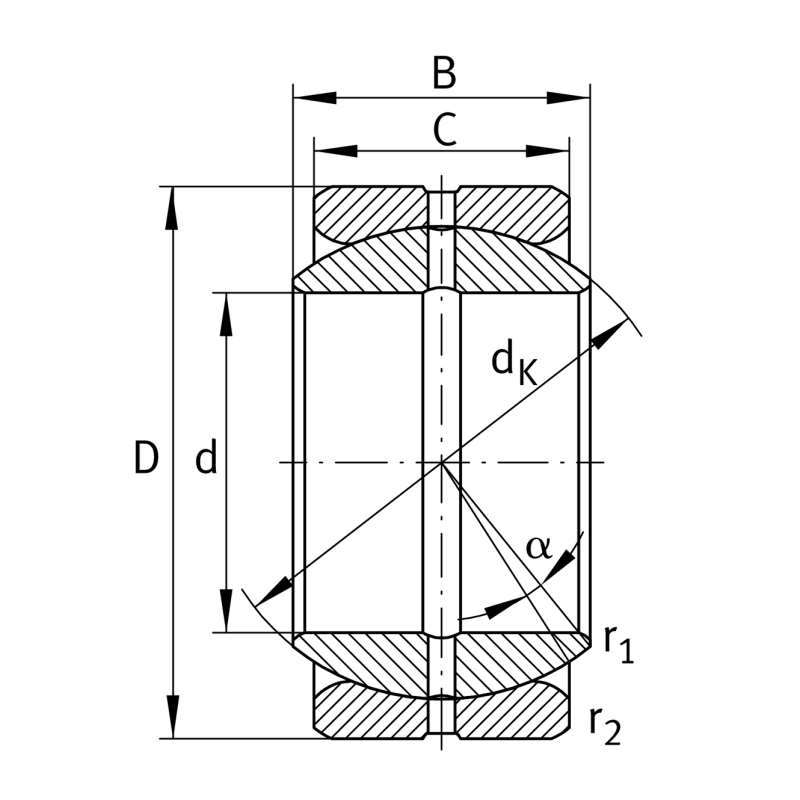

| Bore diameter bearing | d | 22,23 | mm |
| Width inner ring | B | 19,43 | mm |
| Basic static load rating, radial | C0r | 128,000 |
| Outside diameter bearing | D | 36,51 | mm |
| Basic dynamic load rating, radial | Cr | 55,300 |

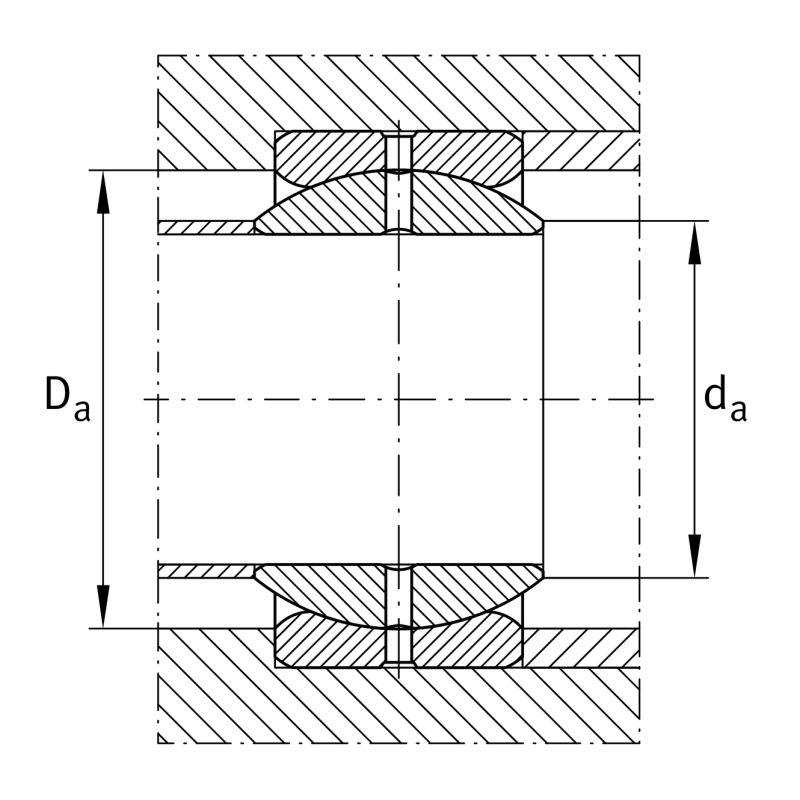

| Connection measure Inner ring | da max | 25,40 | mm |
| Width Outer ring | C | 16,66 | mm |
| Tilt angle | α | 6 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Radialluft | Gr | 0,08 - 0,18 |
| Ball diameter | dK | 32 | mm |
| Edge Spacing | r1smin | 0,60 | mm |
| Outside diameter, lower tolerance | Do UT | -0,01 | mm |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | GEZ014 ES (SKF) |
