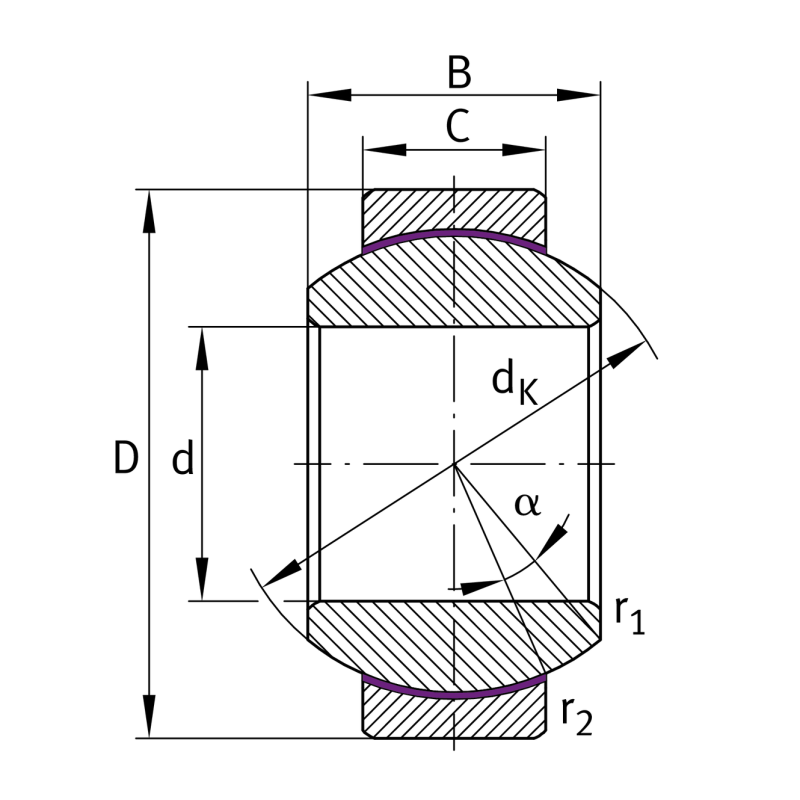

| Outside diameter bearing | D | 22 | mm |
| Width inner ring | B | 12 | mm |
| Basic dynamic load rating, radial | Cr | 11,300 |
| Bore diameter bearing | d | 10 | mm |
| Width Outer ring | C | 7 | mm |
| Basic static load rating, radial | C0r | 28,400 |
| Edge Spacing | r1smin | 0,30 | mm |

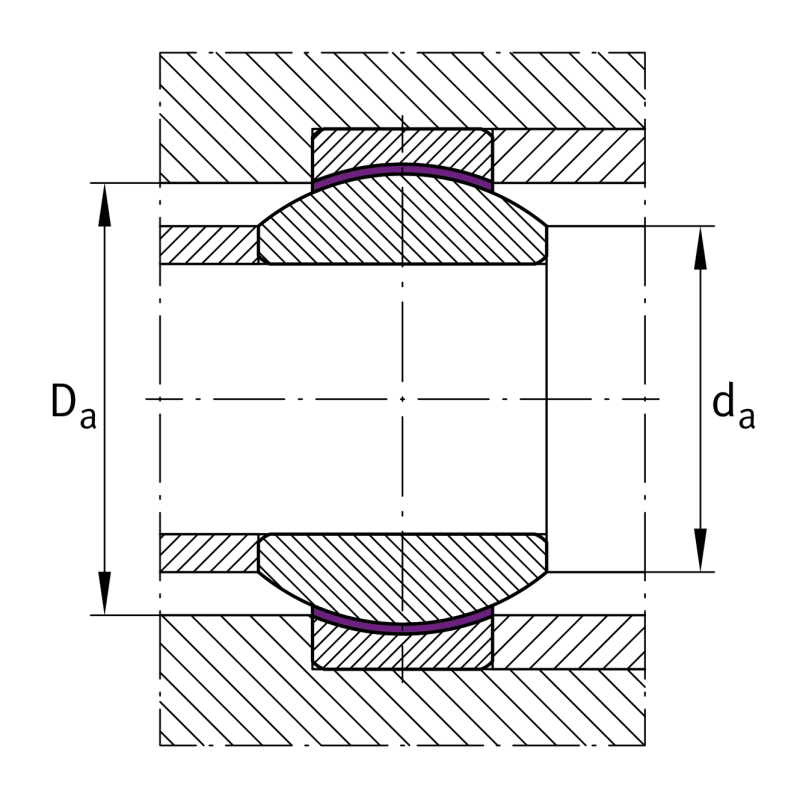

| Connection measure Inner ring | da max | 13,40 | mm |
| Ball diameter | dK | 18 | mm |
| Radialluft | Gr | 0 - 0,032 | |
| Outside diameter, lower tolerance | Do UT | -0,01 | mm |
| Tilt angle | α | 18 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | GEH10 C (SKF) |
