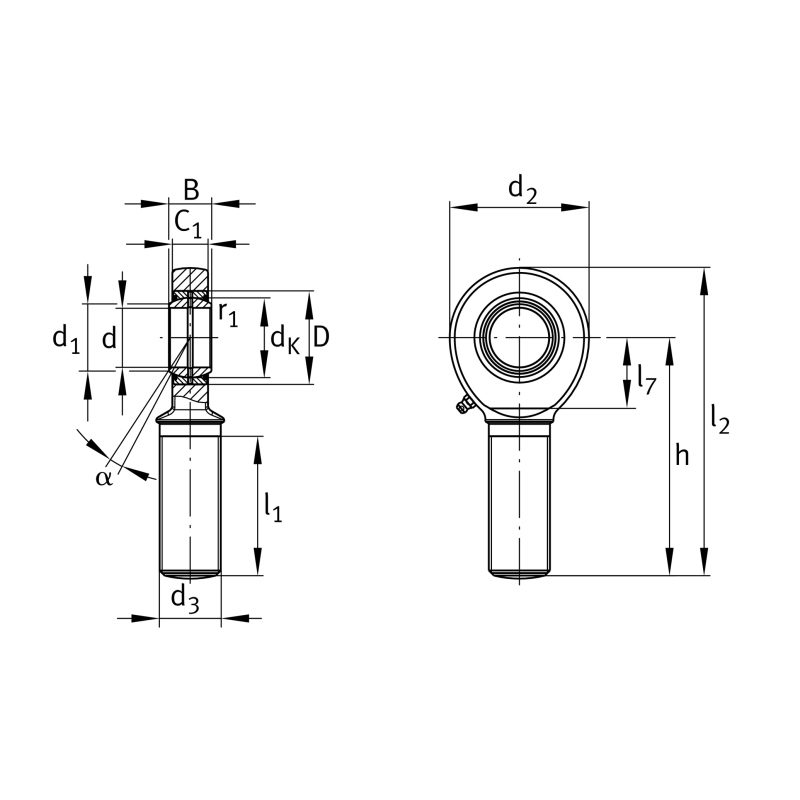

| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Radialluft | Gr | 0,037 - 0,1 | |
| Total length external thread head | l2 | 181 | mm |
| Tilt angle | α | 6 | ° |
| Shank Length External thread rod | h | 140 | mm |
| Outer eye diameter | d2 | 82 | mm |
| Ball diameter | dK | 47 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Distance drilling with/shaft start | l7 | 42 | mm |
| Shank Length External thread head | l1 | 82 | mm |
| Width of the rod end | C1 | 21 | mm |
| Thread size | d3 | M36x3 | |
| Outer flange diameter inner ring | d1 | 39,70 | mm |
| Edge Spacing | r1smin | 0,60 | mm |
| Basic static load rating, radial | C0r | 159,000 | |
| Width inner ring | B | 25 | mm |
| Bore diameter bearing | d | 35 | mm |
| Basic dynamic load rating, radial | Cr | 79,900 | |
| Outside diameter bearing | D | 55 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | SA35-ES (SKF) |
| Askubal | EA35-2RS |
| SKF | SA35 ES-2RS (SKF) |
