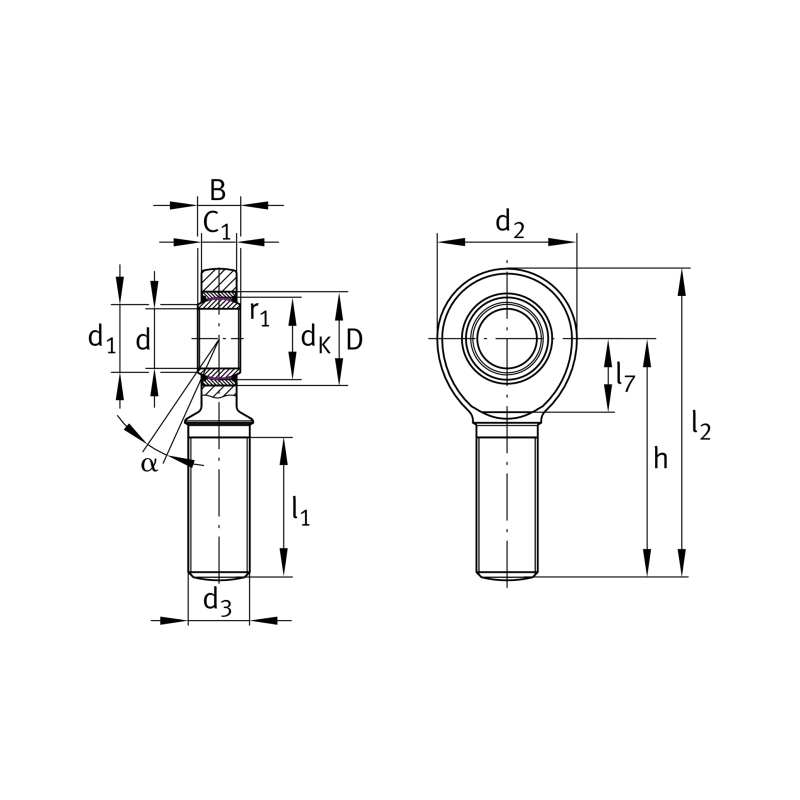

| Width inner ring, lower tolerance | BUT | -0,15 | mm |
| Radialluft | Gr | 0 - 0,072 | |
| Thread length external thread | l1 | 140 | mm |
| Width of the rod end | C1 | 47 | mm |
| Thread size | d3 | M64x4 | |
| Ball diameter | dK | 105 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0,02 | mm |
| Distance drilling with/shaft start | l7 | 100 | mm |
| Tilt angle | α | 6 | ° |
| Shank Length External thread rod | h | 270 | mm |
| Outer flange diameter inner ring | d1 | 89,40 | mm |
| Edge Spacing | r1smin | 1 | mm |
| Basic static load rating, radial | C0r | 690,000 | |
| Width inner ring | B | 55 | mm |
| Outside diameter bearing | D | 120 | mm |
| Bore diameter bearing | d | 80 | mm |
| Basic dynamic load rating, radial | Cr | 1,130,000 | |
| Total length external thread rod | l2 | 360 | mm |
| Outer eye diameter | d2 | 180 | mm |
