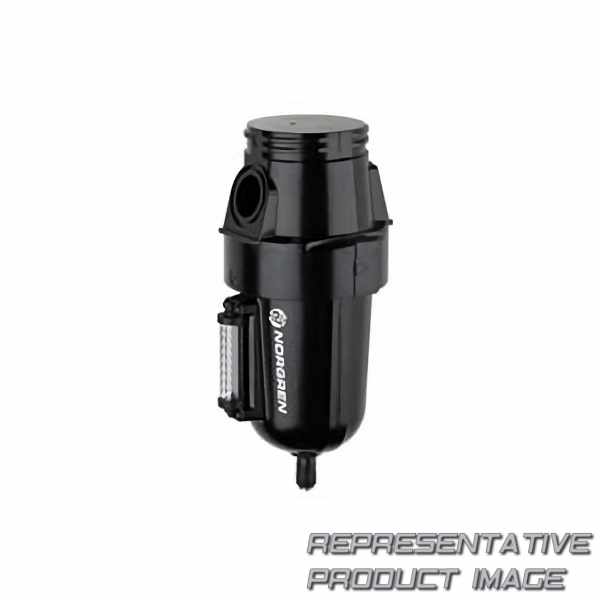

NORGREN F68G-NNN-AR3 olympian plus general purpose filter

Name: F68G-NNN-AR3 NORGREN
Brand: NORGREN
SKU: 784483-de-eur
Price: 497.92 EUR
Availability: InStock

497,92 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	17 bar
Breite	124mm

Gewicht	1,70Kg

body		aluminium
bowl capacity volume litre		0.5 l/s
data performance shelf life		3 years
elastomers		nitrile rubber
filter element		sintered plastic
flow flow dm3secbar		200 dm3/(s.bar) dm3/sec
maximum inlet pressure pressure bar		17 bar
mil spec		unavailable
operating temperature temperature celsius min to max range		-20 ... 80 °c
length length millimetre		256 mm
width length millimetre		124 mm
product style		plug-in
Baureihe		olympian plus

bowl		aluminium
bowl type		metal with liquid level indicator
Ablauftyp		automatic drain
eu country of origin		czechia
filter element m particlesize micron		40 μm
maximum inlet pressure imperial pressure psi		246 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-4 ... 176 °f
height length millimetre		108 mm
weight weight kilogram		1.66 kg
Anschlussgröße		without yoke
range		f68g
service life indicator		without
