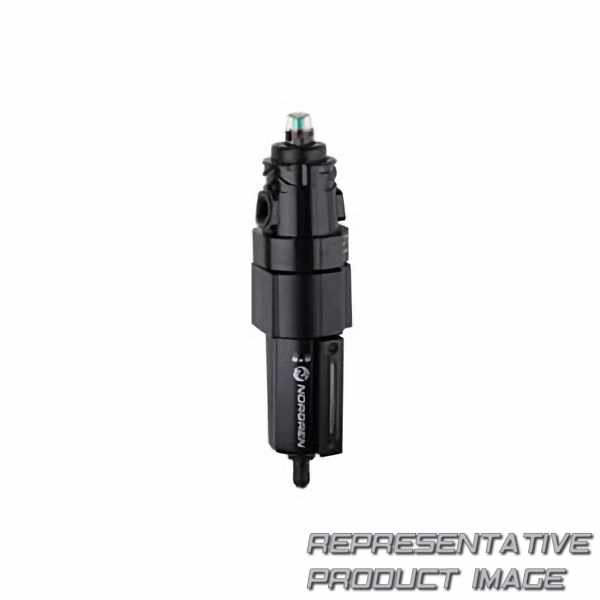

NORGREN F64H-NND-AD0 olympian plus high flow oil removal filter

Name: F64H-NND-AD0 NORGREN
Brand: NORGREN
SKU: 780747-de-eur
Price: 822.53 EUR
Availability: InStock

822,53 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	17 bar
Breite	71mm

Gewicht	1,38Kg

body		zinc alloy
bowl type		metal with liquid level indicator
Ablauftyp		automatic drain
eu country of origin		czechia
filter element m particlesize micron		0.01 μm
maximum inlet pressure pressure bar		17 bar
mil spec		unavailable
operating temperature temperature celsius min to max range		-20 ... 65 °c
length length millimetre		223 mm
width length millimetre		71 mm
Anschlussgröße		without yoke
range		f64h
service life indicator		with

bowl		aluminium
data performance shelf life		10 years
elastomers		nitrile rubber
filter element		composite
maximum inlet pressure imperial pressure psi		247 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-4 ... 149 °f
height length millimetre		71 mm
weight weight kilogram		1.379 kg
particle removal particlesize micron		0.01 μm
product style		plug-in
Baureihe		olympian plus
