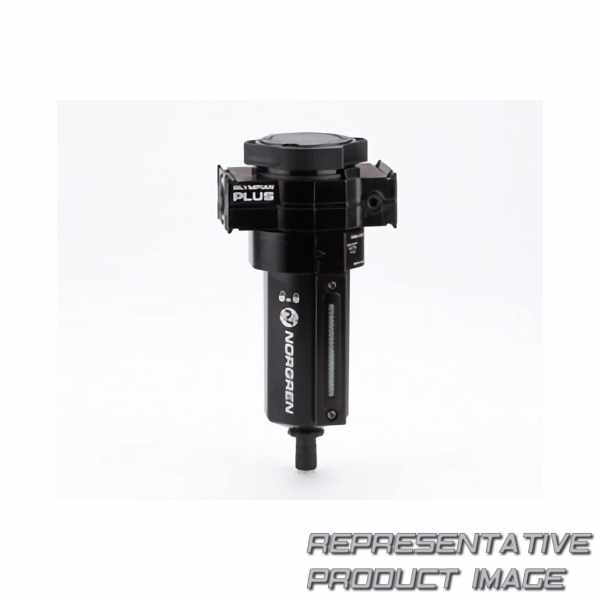

NORGREN F64G-4GN-AD3 olympian plus general purpose filter

Name: F64G-4GN-AD3 NORGREN
Brand: NORGREN
SKU: 786567-de-eur
Price: 549.97 EUR
Availability: InStock

549,97 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	17 bar
Breite	105mm

Gewicht	1,37Kg

body		zinc alloy
bowl type		metal with liquid level indicator
Ablauftyp		automatic drain
eu country of origin		czechia
filter element m particlesize micron		40 μm
flow flow dm3secbar		75 dm3/(s.bar) dm3/sec
maximum inlet pressure pressure bar		17 bar
mil spec		unavailable
operating temperature temperature celsius min to max range		-20 ... 80 °c
length length millimetre		223 mm
width length millimetre		105 mm
product style		plug-in
Baureihe		olympian plus

bowl		aluminium
data performance shelf life		10 years
elastomers		nitrile rubber
filter element		sintered plastic
flow flow dm3sec		75 dm3/sec
maximum inlet pressure imperial pressure psi		247 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-4 ... 176 °f
height length millimetre		74 mm
weight weight kilogram		1.37 kg
Anschlussgröße		g1/2
range		f64g
service life indicator		without
