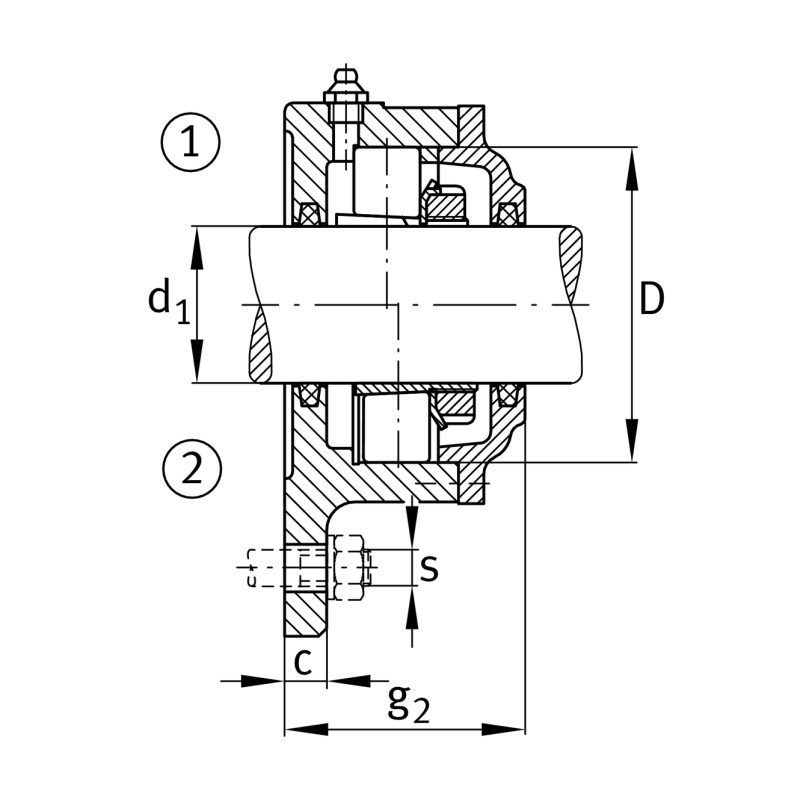

| Shaft diameter | d | 35 | mm |

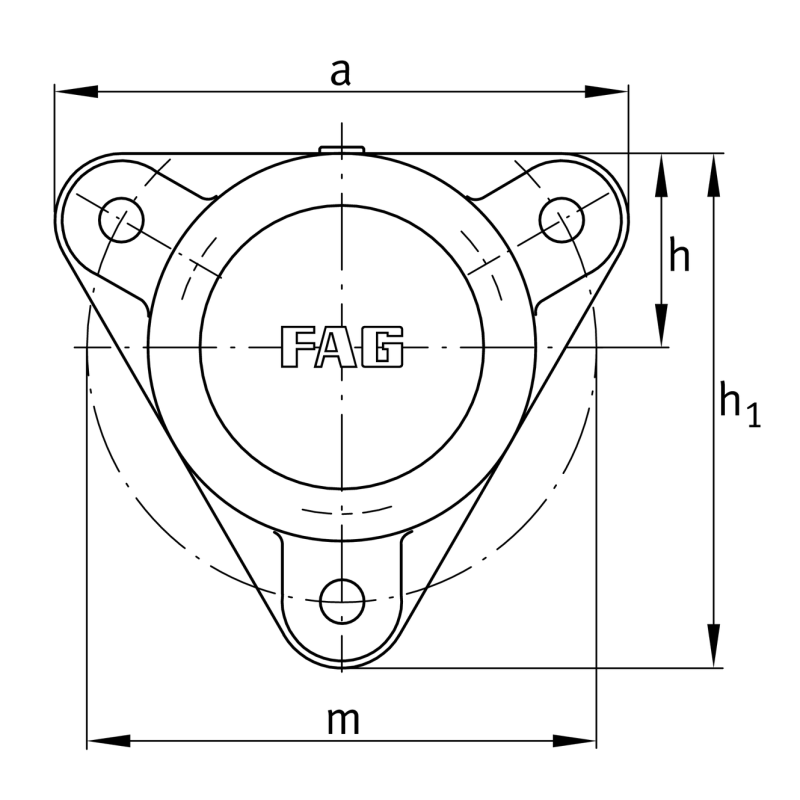

| Height flange | h1 | 143 | mm |
| number of fastening holes | 3 |
| Flange width | a | 160 | mm |
| Total width with cover | g2 | 66 | mm |
| connection thread lubrication | M10x1 | ||
| Outside diameter bearing | D | 80 | mm |
| Distance shaft axis | h | 54 | mm |
| Size of fixing screws | s | M12 |
| Thickness of flange | c | 12 | mm |
| distance flange to bearing seat | g4 | 22 | mm |
| pich circle diameter fixing holes | m | 140 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | FNL508 B (SKF) |
