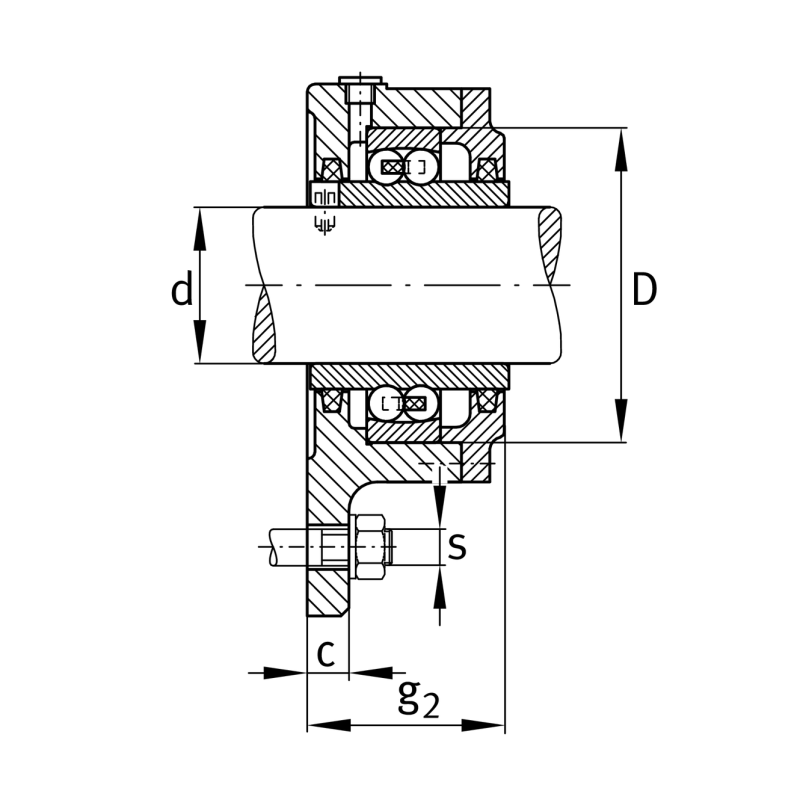

| Shaft diameter | d | 40 | mm |
| Total width with cover | g2 | 60 | mm |

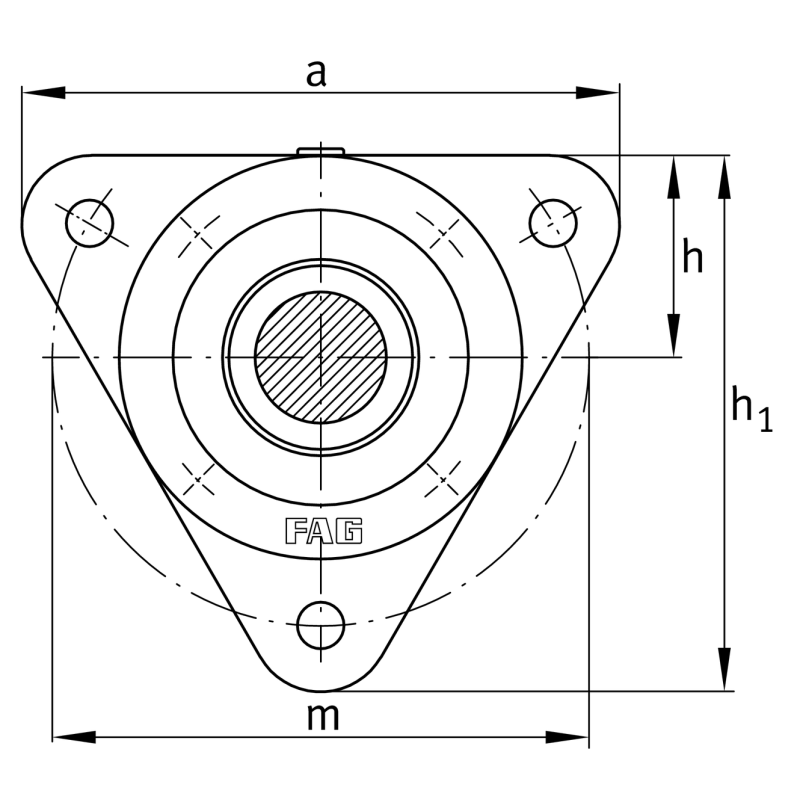

| Flange width | a | 160 | mm |
| Height flange | h1 | 143 | mm |
| Connection thread for lubrication | M10x1 | ||
| Outside diameter bearing | D | 80 | mm |
| Pitch circle diameter fixing holes | m | 140 | mm |
| Thickness of flange | c | 12 | mm |
| Distance shaft axis | h | 54 | mm |
| Size of fixing screws | s | M12 |
| Hersteller | Teilenummer |
|---|---|
| SKF | I-120017 |
