| Recommended tightening torque for set screw | 22 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 66 kN | ||

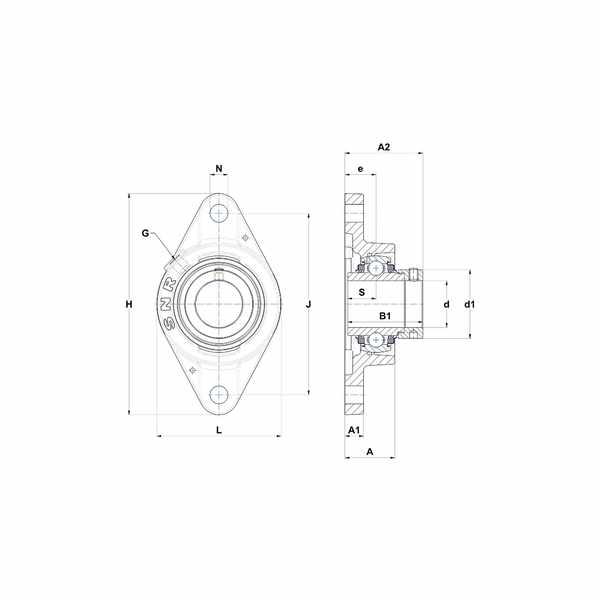

| N - Mounting hole dimension | 21 mm | ||
| J - Mounting holes distance | 216 mm | ||
| G - Grease fitting | R1/8" | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 102 mm | ||
| A2 - Total height from mounting surface | 92,8 mm | ||
| A - Housing height | 57 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 49,5 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 37,3 mm | ||
| L - Housing width / diameter | 160 mm | ||
| H - Housing length, width or diameter | 258 mm | ||
| e - Distance mounting surface to bearing center | 38 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 92,1 mm | ||
| A1 - Housing foot height / flange height | 18 mm | ||
| Brand | SNR |
