FESTO 8025642 Beschichtung

Name: 8025642 FESTO
Brand: FESTO
SKU: 690459-de-eur
Price: 42.93 EUR
Availability: SoldOut

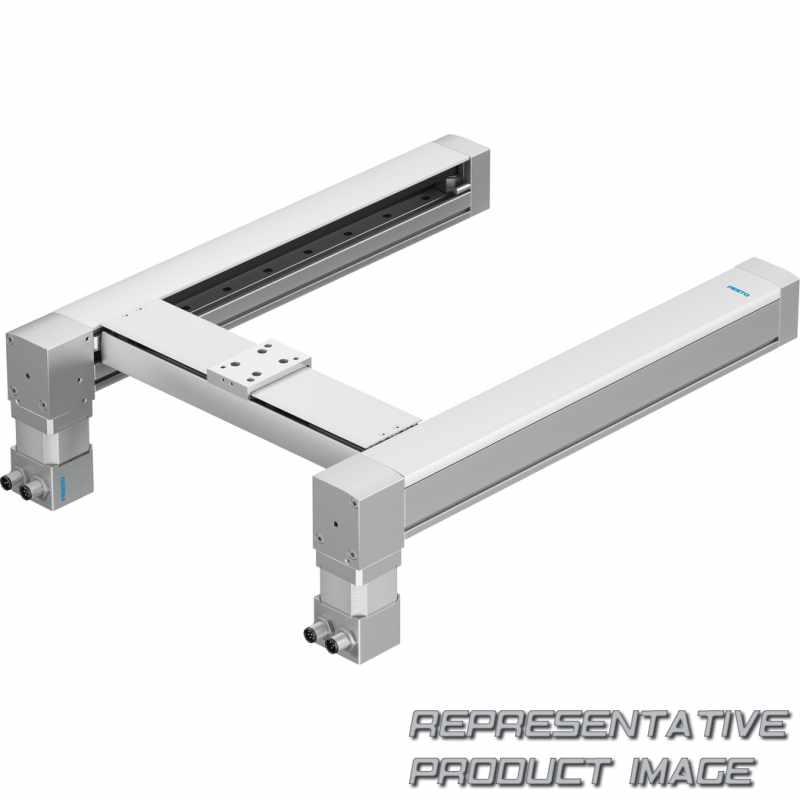

EXCM-30-900-ET

42,93 € ~~72,62 €~~ -40%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Baugröße	30

Einbaulage	optional

Werkstoff-Hinweis		Contains paint-wetting impairment substances RoHS-compliant
Communication interface, logic		CAN DS 301 I/O 31pos Ethernet - TCP/IP
Switching logic for inputs		NPN (negative switching) PNP (positive switching)
Working range of logic input		24 V
Process interfacing		I/O coupling For 31 sets
Number of digital logic inputs		8
Feed constant		38 mm/U
Guide value nominal load, horizontal		3 kg
Max. process force in Z direction		100 N
Max. Moment My		10,9 Nm
Max. Kraft Fz		1.345 N
Motor holding torque		0,5 Nm
Schutzart		IP20
Relative Luftfeuchtigkeit		0 - 90% Non-condensing
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive
Ethernet, supported protocols		TCP/IP
Parameterisation interface		Ethernet
Nominal voltage for logic power supply DC		24 V
Einschaltdauer		100%
Brake resistance		15 Ohm
Max. Geschwindigkeit		0,5 m/s ... 1 m/s
Anzeige		7-segment LED
Position mode		Record selection mode Position directly transferred
Type of interpolation		Linear interpolation
Protective function		I²t monitoring Temperature monitoring Current monitoring Voltage failure detection Following error monitoring Software end-position detection
Position sensor		Encoder
Operating mode of drive unit		Micro step, 2000 steps/revolution
Baugröße		30

Befestigungsart		Profile mounting
Switching logic for outputs		NPN (negative switching) PNP (positive switching)
Features of logic input		Galvanically connected to logic potential
Specification logic input		Based on IEC 61131-2
Communication profile		FHPP
Number of digital logic outputs 24 V DC		5
Guide value nominal load, vertical		2 kg
Nenn-Anziehdrehmoment		0,04 Nm
Max. Moment Mz		5,5 Nm
Max. Moment Mx		5,5 Nm
Max. drive torque		0,2 Nm
Umgebungstemperatur		10 °C ... 45 °C
Schalldruckpegel		52 dB(A)
Lagertemperatur		-10 °C ... 60 °C
Permissible range for logic voltage		± 15 %
Position control		yes
Nominal voltage load voltage DC		24 V ... 48 V
Max. current digital logic outputs		100 mA
Features of digital logic outputs		Not galvanically isolated
Wiederholgenauigkeit		±0.05 mm
Max. acceleration		10 m/s² ... 20 m/s²
Sicherheitsfunktion		Safe torque off (STO)
Type of motor		Stepper motor
Konstruktiver Aufbau		Planar surface gantry
Mains filter		Integrated
Einbaulage		optional
Controller operating mode		PWM MOSFET power output stage Cascade controller with P position controller PI speed controller PI current regulator
