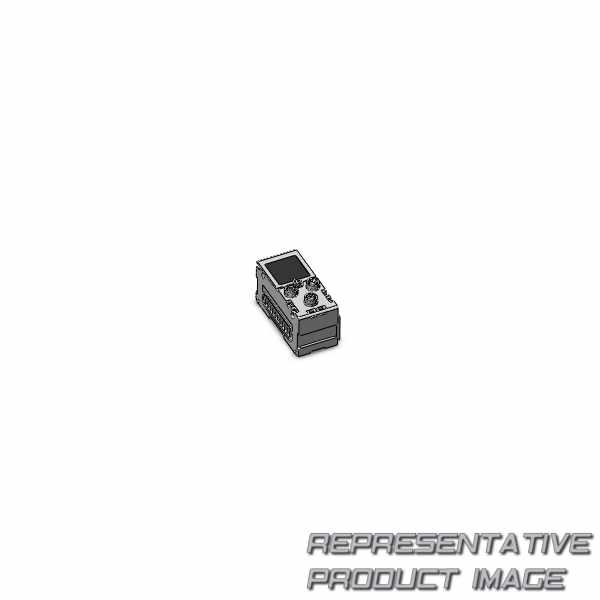

| Baureihe | ex600-sec1 | ||
| communication - communication speed | 100 mbps | ||
| communication - i/o occupation area (inputs/outputs) | max. (512 inputs/512 outputs) | ||
| output - output type | pnp (negative common) | ||
| output - load | solenoid valve with surge voltage suppressor 24 vdc, 1.5 w or less (smc) | ||
| output - fail safe | hold/clear/forced power on | ||
| enclosure | ip67 (manifold assembly) | ||
| Gewicht | .66138 lb |
| communication - protocol | ethercat (conformance test record v.1.2) | ||
| communication - configuration file | xml file | ||
| internal current consumption (power supply for control/input) | 100 ma or less | ||
| output - number of outputs | 32 outputs (8/16/24/32 outputs selectable) | ||
| output - power supply | 24 vdc, 2 a | ||
| output - protection | short-circuit protection | ||
| Standards | ce marking, ul (csa), rohs recognition |
