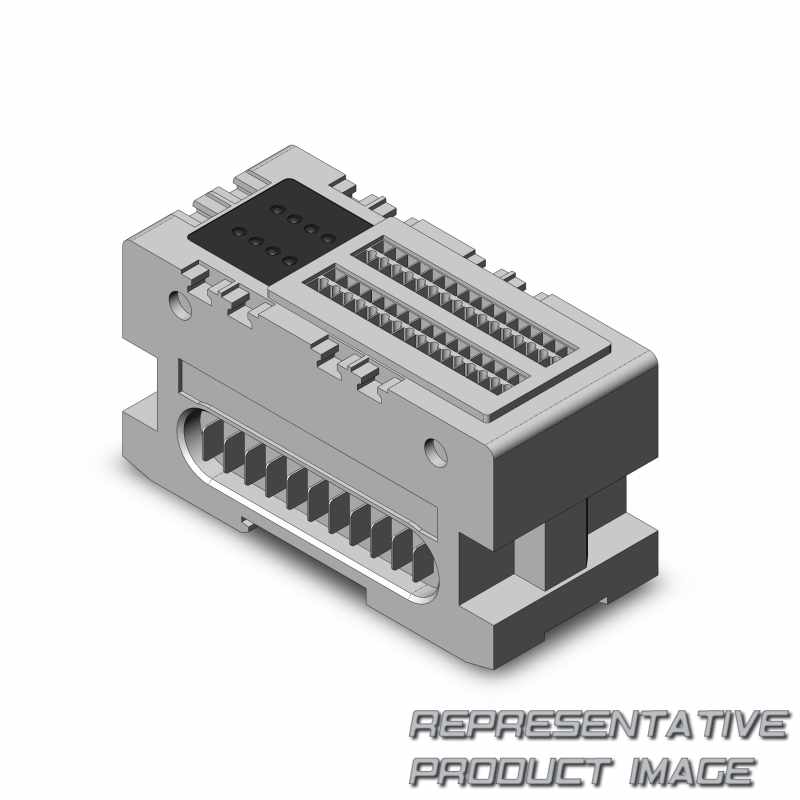

| Baureihe | ex600-dxpf | ||
| input - input connector | spring type terminal block (32 pins) | ||
| input - supplied voltage | 24 vdc | ||
| input - protection | short-circuit protection | ||
| input - on voltage | 17 v or more (at npn input, between the pin for input terminal and supplied voltage of +24 v) (at pnp input, between the pin for input terminal and supplied voltage of 0 v) | ||
| applicable wire | 0.08 to 1.5 mm2 (awg16 to 28) | ||
| enclosure | ip40 (manifold assembly) | ||
| Gewicht | .91637 lb |
| input - input type | pnp | ||
| input - number of inputs | 16 inputs (2 inputs x 8 blocks) | ||
| input - max. supplied current | 0.5 a/block2 a/unit | ||
| input - input current (at 24 vdc) | 5 ma or less | ||
| input - off voltage | 5 v or less (at npn input, between the pin for input terminal and supplied voltage of +24 v) (at pnp input, between the pin for input terminal and supplied voltage of 0 v) | ||
| Stromaufnahme | 55 ma or less | ||
| Standards | ce marking, ul (csa), rohs recognition |
