| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 14 kN | ||

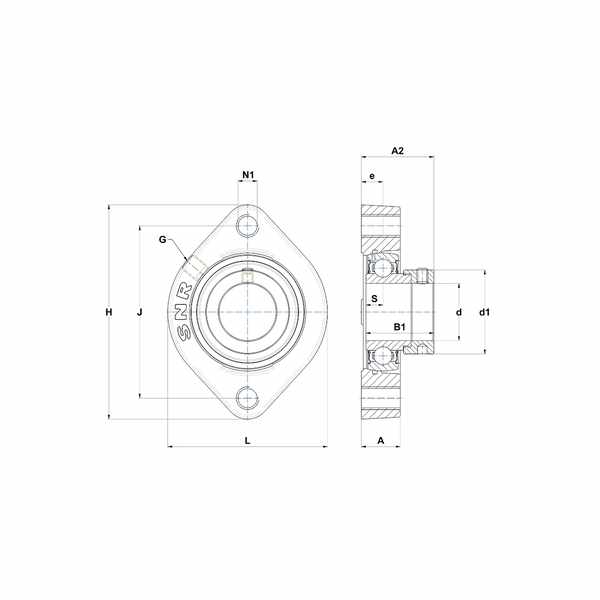

| N1 - Mounting hole thread | M12 | ||
| J - Mounting holes distance | 76,2 mm | ||
| G - Grease fitting | M6x1 | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 37,4 mm | ||
| A2 - Total height from mounting surface | 33,3 mm | ||
| Brand | SNR |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 7,88 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 7,5 mm | ||
| L - Housing width / diameter | 71 mm | ||
| H - Housing length, width or diameter | 97 mm | ||
| e - Distance mounting surface to bearing center | 9,9 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 30,9 mm | ||
| A - Housing height | 17,5 mm |
