| Recommended tightening torque for set screw | 22 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 52,5 kN | ||

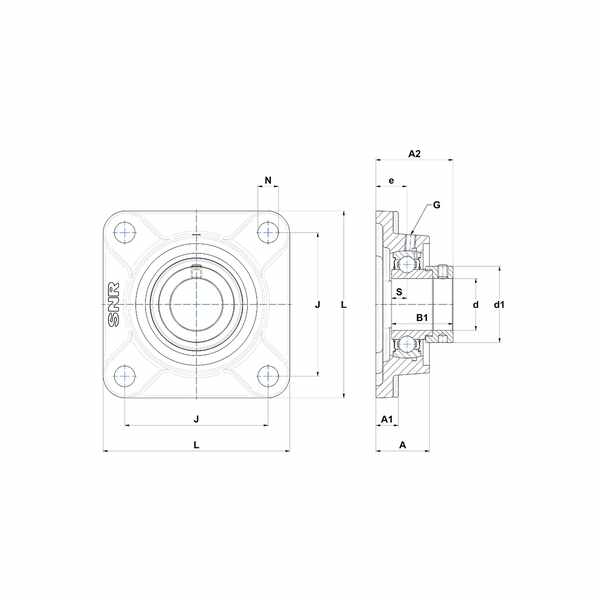

| N - Mounting hole dimension | 19 mm | ||
| J - Mounting holes distance | 143 mm | ||
| e - Distance mounting surface to bearing center | 29 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 49,3 mm | ||
| A1 - Housing foot height / flange height | 18 mm | ||
| Brand | SNR |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 32,8 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 12 mm | ||
| L - Housing width / diameter | 175 mm | ||
| G - Grease fitting | M6x1 | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 82 mm | ||
| A2 - Total height from mounting surface | 66,3 mm | ||
| A - Housing height | 48 mm |
