| Electrical connection for sensor, number of pins/wires | 5 | ||
| Electrical connection for sensor, connection type | Plugs | ||
| Electrical connection for actuator, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Betriebsbereitschaftsanzeige | LED | ||
| Schutzart | IP40 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive | ||
| Type of motor | Stepper motor | ||
| Nennbetriebsspannung DC | 24 V | ||
| Werkstoff Schrauben | Coated steel | ||
| Werkstoff Gehäuse | Hard anodised wrought aluminium alloy | ||
| Werkstoff Deckel | PA PA-reinforced | ||
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Befestigungsart | Via mounting kit | ||
| Produktgewicht | 985 g | ||
| Relative Luftfeuchtigkeit | 0 - 95% Non-condensing | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||

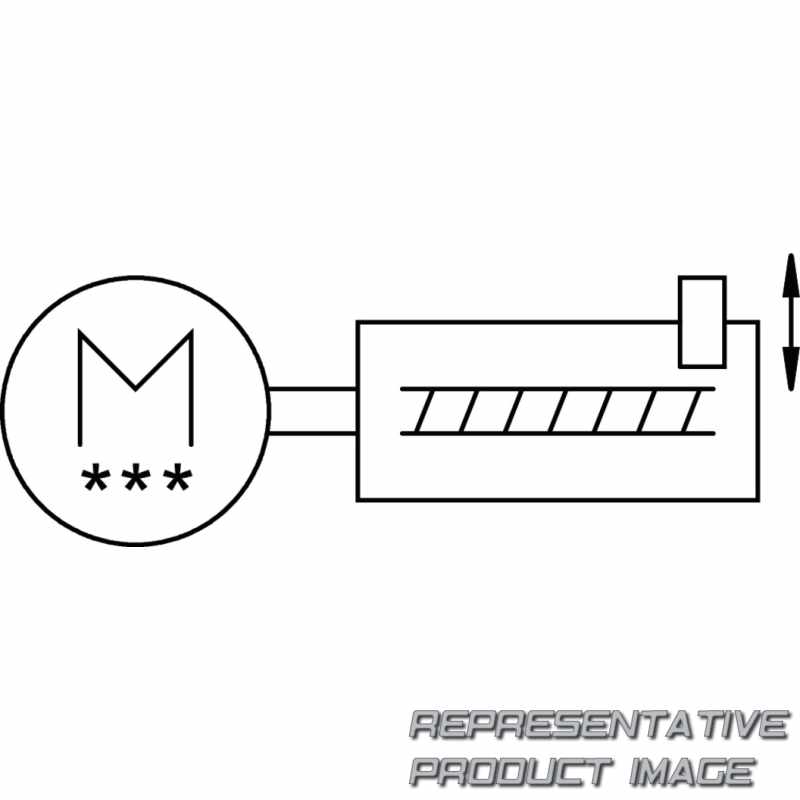

| Symbol | 00995845 | ||
| Einbaulage | optional | ||
| Konstruktiver Aufbau | Electric stopper cylinder |
| Electrical connection for sensor, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection for actuator, number of pins/wires | 5 | ||
| Electrical connection for actuator, connection type | Plugs | ||
| Max. Leitungslänge | 30 m | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC | ||
| KC-Zeichen | KC-EMV | ||
| Zulässige Spannungsschwankungen | +/- 15% | ||
| Max. Stromaufnahme | 2.000 mA | ||
| Werkstoff Kolbenstange | High-alloy stainless steel | ||
| Werkstoff Dichtungen | NBR | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Zulassung | RCM trademark | ||
| Max. cycle frequency | 0,33 Hz | ||
| Dämpfungslänge | 18,2 mm | ||
| Lagertemperatur | -20 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress | ||
| Positionserkennung | With Hall sensor | ||
| Baugröße | 100 |
