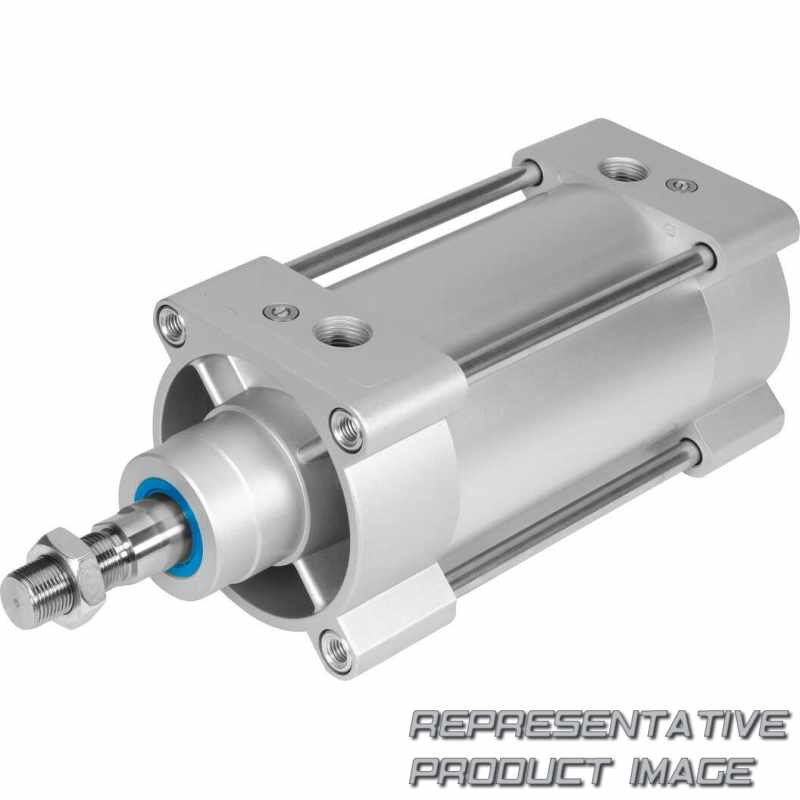

DSBG Festo

FESTO DSBG

398 Produkte

Technische Daten

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DSBG – Standards-based cylinder, double-acting, based on ISO 15552. Finden Sie das passende Produkt durch Filtern mit Protection against rotation, Running characteristics, Central swivel mounting, Piston diameter [mm], Stroke [mm], Piston rod type, Piston rod thread type, Piston rod bearing version, Dämpfung, Position sensing, Standard, Corrosion protection, Temperature range, Scraper variant, Swivel mounting position, Piston rod extension, Piston rod thread extension und Piston rod thread shortening.

DSBG Typcodes

Serie	Katalognummernformat	Beschreibung
DSBG	DSBG- - -	Standards-based cylinder, double-acting, based on ISO 15552
DSBG	DSBG- - - - L	Standards-based cylinder, double-acting, based on ISO 15552

Typcode zur Katalognummer DSBG, DSBG- - -

001	Series
DSBG	Standards-based cylinder, double-acting, based on ISO 15552
002	Protection against rotation
	None
Q	With protection against rotation
003	Running characteristics
	Standard
L	Low friction
U	Uniform, slow movement
L1	Low friction for balancer applications
004	Central swivel mounting
	None
Y	Central
V	Central, clamped
005	Piston diameter [mm]
32	32
40	40
50	50
63	63
80	80
100	100
125	125
160	160
200	200
250	250
320	320
006	Stroke [mm]
...	1 ... 2800
007	Piston rod type
	At one end
T	Through piston rod
008	Piston rod thread type
	Male thread
F	Female thread
009	Piston rod bearing version
SL	Sintered bearing
	Polymer bearing
010	Cushioning
P	Elastic cushioning rings/plates on both sides
PPS	Pneumatic cushioning, self-adjusting at both ends
PPV	Pneumatic cushioning, adjustable at both ends

011	Position sensing
	None
A	For proximity sensor
012	Standard
	Not according to standard
N3	Conforms to ISO 15552
013	Corrosion protection
	Standard
R3	High corrosion protection
014	Temperature range
	Standard
T1	Heat-resistant seals max. 120°C
T3	-40 ... +80°C
T4	0 ... +150°C
015	Protection against particles
	Standard
P2	Bellows on bearing cap
016	Scraper variant
	None
A2	Hard scraper
A3	For unlubricated operation
A6	Metal scraper
017	EU certification
	None
EX4	II 2GD
018	Swivel mounting position
	None
...V	163 ... 2483 mm
019	Trunnion ﬂ ange mounting position, positive locking
	None
...Y	With
020	Piston rod extension
	None
...E	1 ... 500 mm
021	Piston rod thread extension
	None
...L	0 ... 70 mm
022	Piston rod thread shortening
	None
...S	0 ... 86 mm

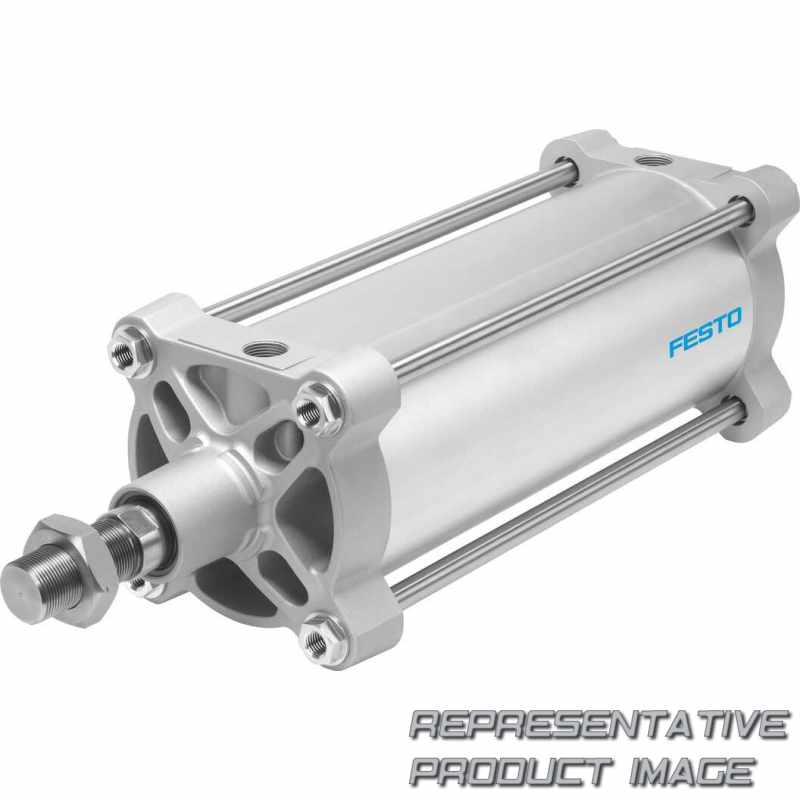

Typcode zur Katalognummer DSBG, DSBG- - - - L

001	Series
DSBG	Standards-based cylinder, double-acting, based on ISO 15552
002	Central swivel mounting
	None
V	Central, clamped
003	Piston diameter [mm]
160	160
200	200
250	250
320	320
004	Stroke [mm]
...	25 ... 500
005	Piston rod type
	At one end
T	Through piston rod
006	Piston rod thread type
	Male thread
F	Female thread
007	Cushioning
P	Elastic cushioning rings/plates on both sides
PPV	Pneumatic cushioning, adjustable at both ends
008	Position sensing
	None
A	For proximity sensor
009	Standard
	Not according to standard
N3	Conforms to ISO 15552
010	Corrosion protection
	Standard
R3	High corrosion protection
011	Temperature range
	Standard
T1	Heat-resistant seals max. 120°C
T4	0 ... +150°C
012	Scraper variant
	None
A6	Metal scraper
013	EU certification
	None

014	Trunnion ﬂ ange mounting position, positive locking
EX4	II 2GD
	None
...Y	With
015	Piston rod extension
	None
...E	1 ... 500 mm
016	Piston rod thread extension
...L	1 ... 70 mm
017	Piston rod thread shortening
	None
...S	0 ... 86 mm
018	Piston rod thread
	Standard
M16	M16
M16P	M16x1.5
M20	M20
M20P	M20x1.5
M24	M24
M27	M27
M36P	M36x2
M42P	M42x2
M48	M48
M42	M42
M27P	M27x2
M30P	M30x2
M36	M36
019	Integrated spacer bolts
	None
B1	Both sides
B2	In the bearing cover
B3	In the end cap
020	Thread length of spacer bolts on bearing cap
	Without spacer bolt
...LB2	20 ... 140 mm
021	Thread length of spacer bolts on end cap
	Without spacer bolt
...LB3	20 ... 140 mm

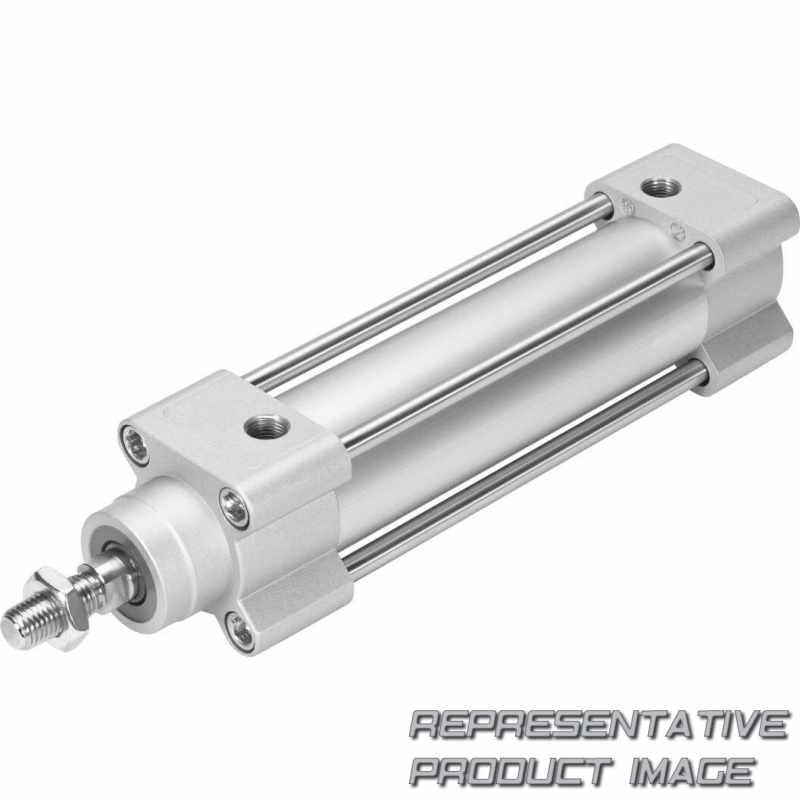

Produkte

Zeige 1 Produkt bis 12 von insgesamt 398

Katalognummer	Teilenummer	Central swivel mounting	Piston rod thread type	Dämpfung	Piston rod thread shortening
DSBG-32-25-PPSA-N3	1645460	None	Male thread	Pneumatic cushioning, self-adjusting at both ends	None
DSBG-32-25-PPVA-N3	1638842	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-40-PPSA-N3	1645461	None	Male thread	Pneumatic cushioning, self-adjusting at both ends	None
DSBG-32-40-PPVA-N3	1638843	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-50-PPSA-N3	1645462	None	Male thread	Pneumatic cushioning, self-adjusting at both ends	None
DSBG-32-50-PPVA-N3	1638844	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-60-PPVA-N3	1634781	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-80-PPSA-N3	1645463	None	Male thread	Pneumatic cushioning, self-adjusting at both ends	None
DSBG-32-80-PPVA-N3	1638845	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-100-PPSA-N3	1645464	None	Male thread	Pneumatic cushioning, self-adjusting at both ends	None
DSBG-32-100-PPVA-N3	1638846	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
DSBG-32-120-PPVA-N3	1634781	None	Male thread	Pneumatic cushioning, adjustable at both ends	None
