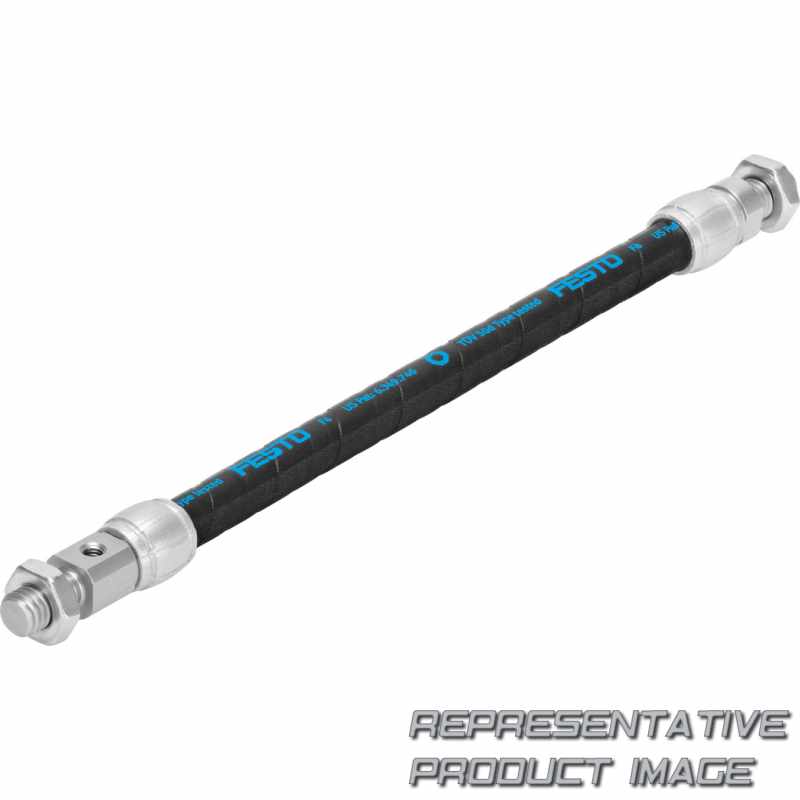

FESTO 8114532 Fluidischer Muskel

Name: 8114532 FESTO
Brand: FESTO
SKU: 661823-de-eur
Price: 185.77 EUR
Availability: InStock

DMSP-5-50N-RM-CM

185,77 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Werkstoff Mutter		Steel Galvanised
Werkstoff Hülse		Wrought aluminium alloy Colourless anodised
Werkstoff-Hinweis		Contains paint-wetting impairment substances RoHS-compliant
Theoretical force at 0.6 MPa (6 bar, 87 psi)		140 N
Max. working load freely suspended		5 kg
Korrosionsbeständigkeitsklasse KBK		2 - Moderate corrosion stress
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:-:-]
Funktionsweise		Single-acting Pulling

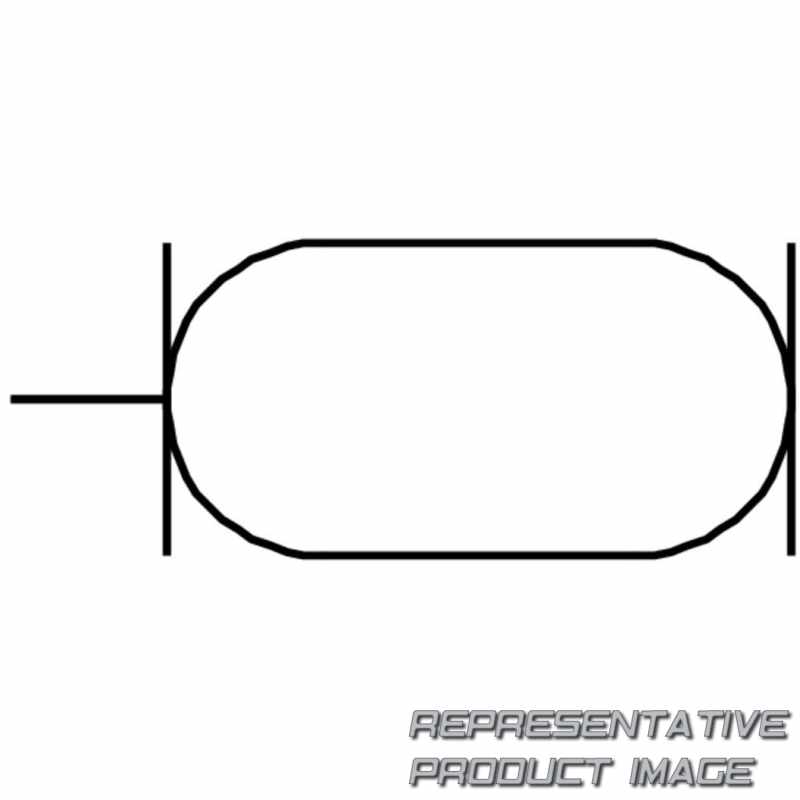

Symbol		00991121
Einbaulage		optional
Permissible parallelism tolerance		± 0.5% up to nominal length of 400 mm
Nominal length		50 mm
Max. contraction		20% of nominal length
Diameter increase with max. contraction		12 mm

Werkstoff Membran		AR CR
Material flange		Wrought aluminium alloy Colourless anodised
Pneumatischer Anschluss		M3
Theoretical Fluidic Muscle force at max. operating pressure		140 N
Umgebungstemperatur		-5 °C ... 60 °C
Hinweis zum Betriebs-/Steuermedium		Lubricated operation possible (in which case lubricated operation will always be required)
Zulassung		German Technical Control Board (TÜV)
Betriebsdruck		0 bar ... 6 bar
Konstruktiver Aufbau		Contracting diaphragm
Permissible angle tolerance		≤ 1 deg
Repetition accuracy muscle		<= 1% of nominal length, cyclical
Max. initial tension		1% of nominal length
Hub		0 mm ... 200 mm
Baugröße		5
