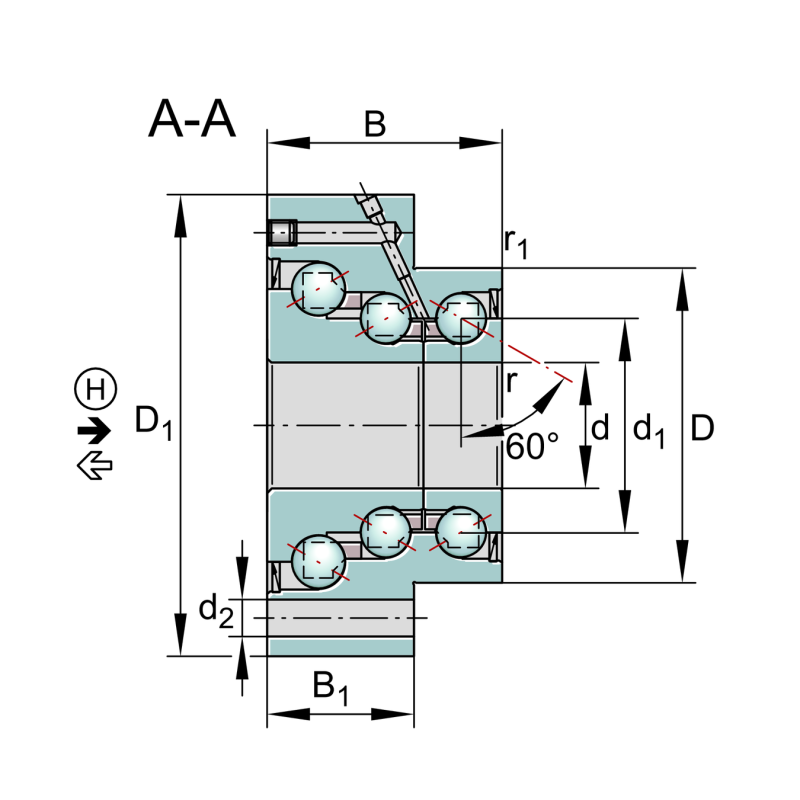

| Bore diameter | d | 40 | mm |
| Außen-Ø | D | 90 | mm |
| Breite | B | 60 | mm |
| Basic dynamic load rating, axial HL | Ca | 127,000 | |
| Basic static load rating, axial HL | C0a | 365,000 | |
| Fatigue load limit, axial HL | Cua | 9,500 | |
| Limiting speed for grease lubrication | nG Grease | 2,900 |
| Bore diameter lower tolerance | -0,01 | mm | |
| Outside diameter lower tolerance | -0,01 | mm | |
| Width lower tolerance | -0,25 | mm | |
| Basic dynamic load rating, axial | Ca | 72,000 | |
| Basic static load rating, axial | C0a | 149,000 | |
| Fatigue load limit, axial | Cua | 6,600 | |
| Thermally permissible speed | nϑ | 1,200 |

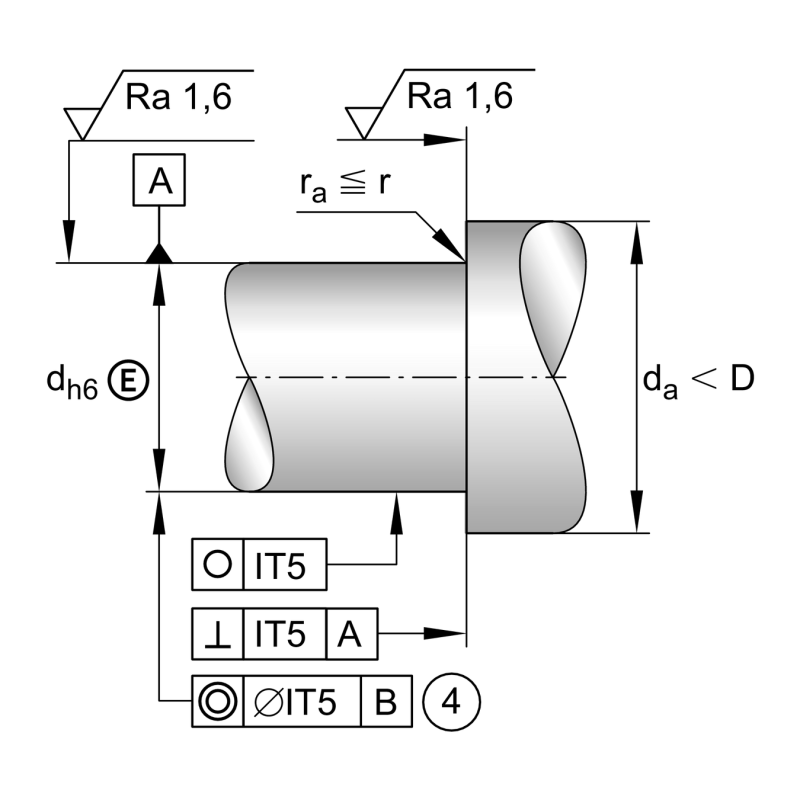

| Minimum diameter shaft shoulder | da min | 56 | mm |
| Fixing scresw DIN EN ISO 4762 10.9 (not included) | M10 |
| Maximum diameter of shaft shoulder | da max | 80 | mm |
| Number of screws | n | 8 |
| Rib diameter inner ring | d1 | 65 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Thickness of flange | C1 | 35 | mm |

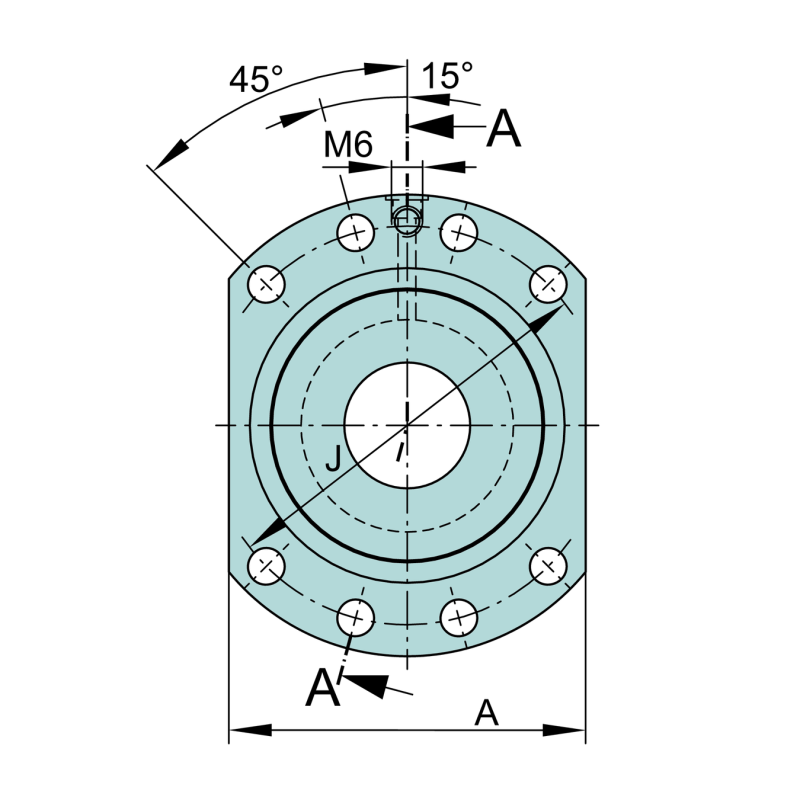

| Pitch circle diameter (holes) | J | 118 | mm |
| Flange diameter | D1 | 140 | mm |
| Minimum chamfer dimension 1 | r1 min | 0,60 | mm |
| Fixing boring diameter | d2 | 11 | mm |
| Flange width | A | 110 | mm |
