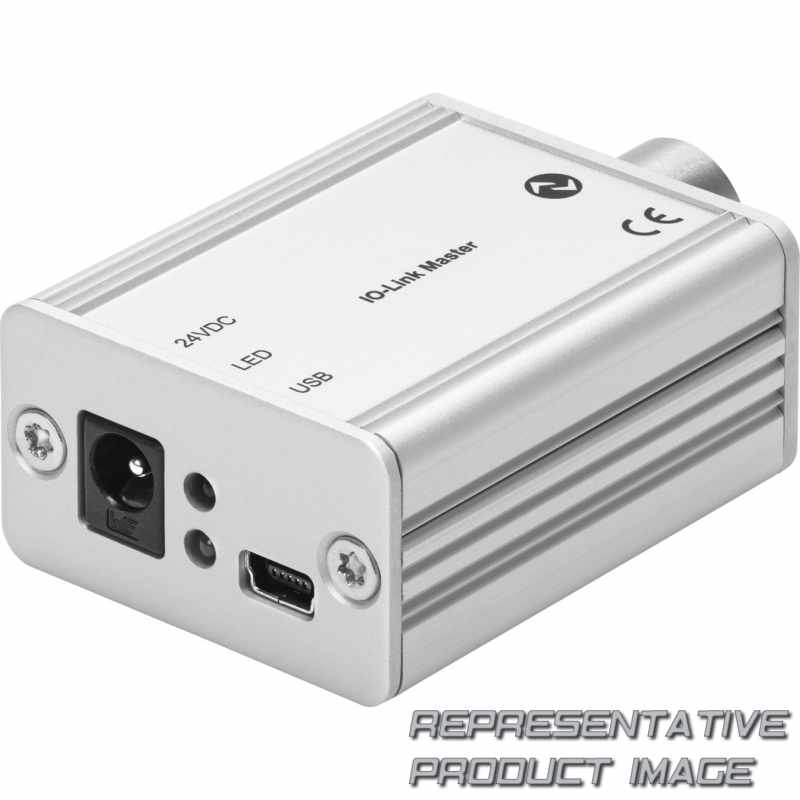

| Werkstoff Gehäuse | Anodised wrought aluminium alloy | ||
| Electrical connection for IO-Link, connection pattern | 00991867 | ||
| Electrical connection for IO-Link, number of pins/wires | 5 | ||
| Electrical connection for IO-Link, connection type | Socket | ||
| USB interface, plug pattern | 00995868 | ||
| Power supply, connection pattern | 00995993 | ||
| Power supply, note on connection technology | for plugs with outside diameter of 5.5 mm/inside diameter of 2.1 mm | ||
| Power supply, connection type | Socket | ||
| IO-Link, Output current | 80 mA with USB operation Max. input current with external supply (<2.5 A) | ||
| IO-Link, minimale Zykluszeit | 1.5 ms | ||
| IO-Link, Prozessdatenbreite OUT | Can be parameterised, 0-32 bytes | ||
| IO-Link, Port class | A B, with accessories | ||
| IO-Link, Protokollversion | Master V 1.0 Master V 1.1 | ||
| Produktgewicht | 106 g | ||
| Schutzart | IP20 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Überlastfestigkeit | Not available | ||
| Verpolungsschutz | For operating voltage connections | ||
| Input current | Max. 2.5 A via external supply Max. 600 mA at the USB connection | ||
| Anwendungshinweis | For use with the USB IO-Link Master Tool software (available from the Support Portal) for Windows version 7 or higher (32/64 bit). |
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Electrical connection IO-Link®, occupied pins/wires | 3 | ||
| Electrical connection for IO-Link, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| USB interface, galvanic isolation | yes | ||
| USB-Schnittstelle, Anschlusstechnik | USB 2.0 type B mini | ||
| Power supply, number of pins/wires | 2 | ||
| power supply, connection system | Coaxial | ||
| Power supply, function | Additional power supply | ||
| IO-Link, Data storage provided | 2 kB/port | ||
| IO-Link, Prozessdatenbreite IN | Can be parameterised, 0-32 bytes | ||
| IO-Link, Number of ports | 1 | ||
| IO-Link, Communication mode | COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB) | ||
| Protokoll | IO-Link® | ||
| Umgebungstemperatur | 0 °C ... 55 °C | ||
| Lagertemperatur | -10 °C ... 75 °C | ||
| Zulassung | RCM trademark | ||
| Kurzschlussfestigkeit | yes | ||
| Output voltage | 24 V DC ± 10% with USB operation 24 V DC ± 6 V with external supply (max. input voltage) | ||
| Input voltage | 5 V DC at the USB connection 24 V DC ± 6 V via external supply | ||
| Entspricht Norm | EN 61131-9 |
