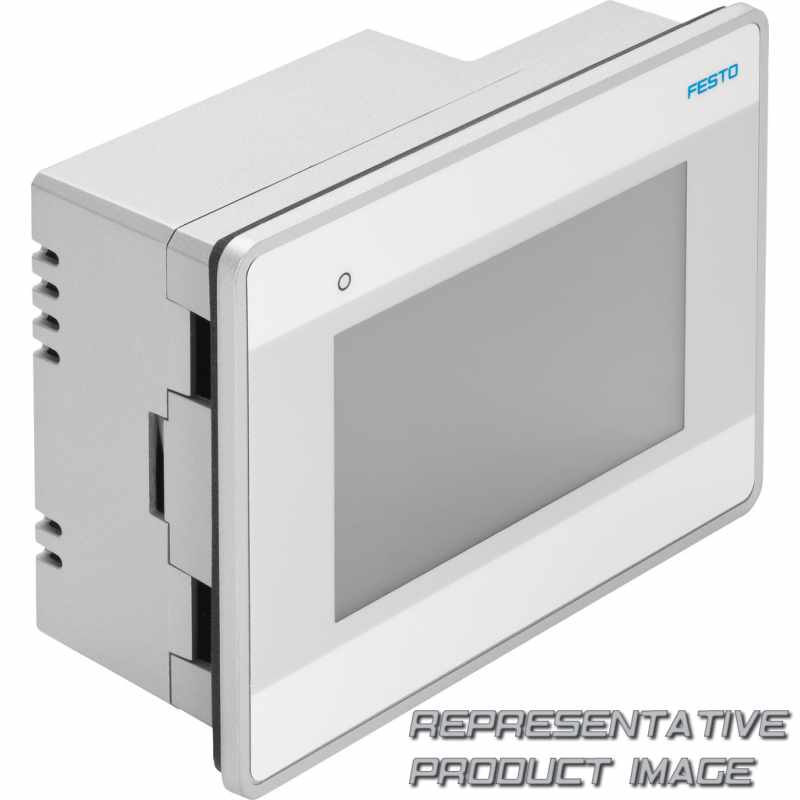

FESTO 574410 Bediengerät

Name: 574410 FESTO
Brand: FESTO
SKU: 677883-de-eur
Price: 1195.97 EUR
Availability: SoldOut

CDPX-X-A-W-4

1.195,97 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Programming software		Designer Studio
Befestigungsart		Front panel mounting
SD card slot		1
PLC interface		Ethernet RS485
Umgebungstemperatur		0 °C ... 50 °C
Relative Luftfeuchtigkeit		5 - 85 % Non-condensing
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive
Current consumption at nominal operating voltage		0.4 A
Display-Auflösung		480x272 pixels
Backup battery		Rechargeable lithium battery
Anzeigeeigenschaft		Touchscreen
Number of system LEDs		1
Deviation, real-time clock		130 s/month
Schedulers		30
Java script file size per page		8.000 Byte
Events per event buffer		2,05
Parameter sets for a recipe		32
Curves per trend widget		5
Clients with simultaneous access		4
Projects of any type on one page		2
Tags		10
Sequence memory		32.000 Byte
Real-time clock		Yes
Length		147 mm
Mounting depth		56 mm

Werkstoff-Hinweis		RoHS-compliant
Ethernet interface		RJ45 10/100 MBd
USB interface		yes
Produktgewicht		1.000 g
Schutzart		IP65 at the front following installation into control panel, IP20 at the back
Lagertemperatur		-20 °C ... 70 °C
Zulassung		C-Tick c UL us listed (OL)
Nennbetriebsspannung DC		24 V
Betriebsspannungsbereich DC		18 V ... 30 V
Anzeigegröße		4.3"
Anzeige		Colour TFT
Number of colours		64 k
Supported PLC protocol		CoDeSys 2.3 CoDeSys 3.X Modbus RTU client Modbus RTU server Modbus TCP client ModbusTCP server
Size of project on disk		30
Alarms		2
Event buffer		4
Recipes		32
Trend buffer		30
Users		50
Widgets		2
Pages		1
Event lists		2,05
Max. front panel thickness		4 mm
Höhe		107 mm
