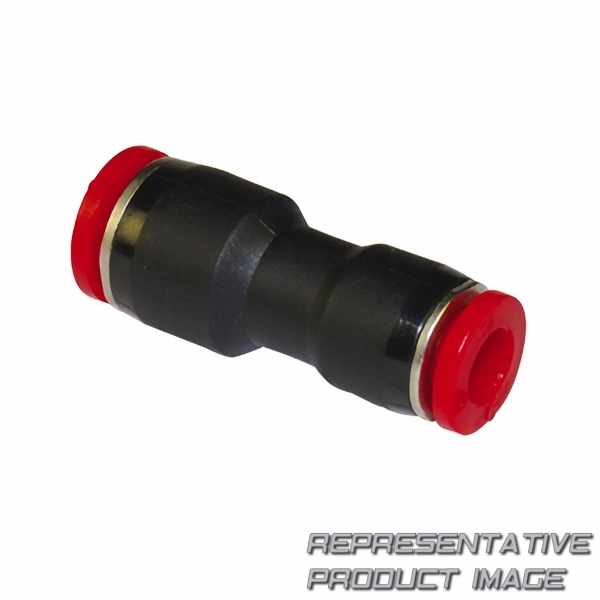

NORGREN C00201006 pneufit c push-in fitting

Name: C00201006 NORGREN
Brand: NORGREN
SKU: 781767-de-eur
Price: 3.48 EUR
Availability: InStock

3,48 € ~~4,74 €~~ -26%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	0 ... 10 bar
Dichtung	nbr (silicone free)

Außendurchmesser	14 mm

body		plastic pbt
data performance shelf life		10 years
Medium		compressed air
od tube inlet length millimetre		6 mm
operating pressure pressure bar min to max range		0 ... 10 bar
operating temperature f temperature fahrenheit min to max range		-4 ... 140 °f
diameter length millimetre		14 mm
product style		pif
Dichtungen		nbr (silicone free)
shape		straight
thread sealant		threebond 2350b
threaded bodies		nickel plated brass

collar		nickel plated brass
grabring		stainless steel
mil spec		unavailable
od tube outlet length millimetre		10 mm
operating pressure psi pressure psi min to max range		0 ... 145 psi
operating temperature temperature celsius min to max range		-20 ... 60 °c
length length millimetre		40 mm
release sleeve and backing ring		pom
Baureihe		pneufit c
thread form		iso rc
Thread Type		iso rc
