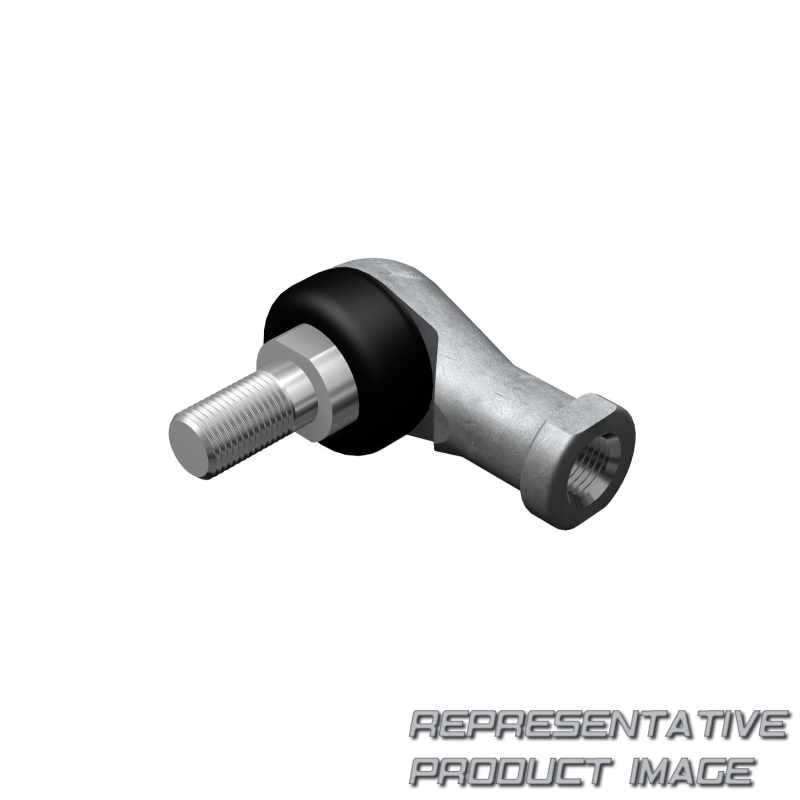

| mass - g | 12 | ||
| applied static loadcs - n | 6.470 | ||

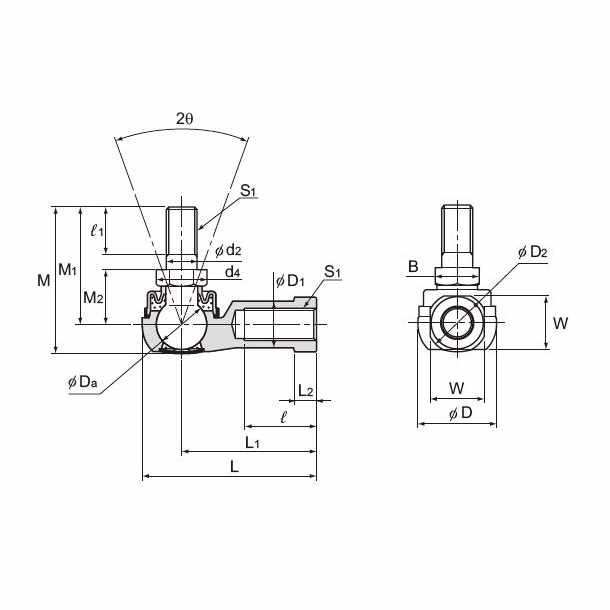

| ball diameterda - mm | 9,53 | ||
| ball shank dimensions - hexagonb0-0.3 - mm | 8 | ||
| ball shank dimensions - m2±0.3 - mm | 10 | ||
| ball shank dimensions - d2h9 - mm | 5 | ||
| holder dimensions - d2 - mm | 12 | ||
| holder dimensions - l2 - mm | 4 | ||
| holder dimensions - l1 - mm | 27 | ||
| outer dimensions - heightm - mm | 26,70 | ||
| outer dimensions - lengthl - mm | 34,50 | ||
| holder thread direction | left-hand |
| yield point strengthpk - n | 2.250 | ||
| permissible tilt angles2θ° - degree | 40 | ||
| ball shank dimensions - d4 - mm | 9,20 | ||
| ball shank dimensions - l1 - mm | 8 | ||
| ball shank dimensions - m1 - mm | 21 | ||
| holder dimensions - w0-0.3 - mm | 10 | ||
| holder dimensions - d1 - mm | 9 | ||
| holder dimensions - l - mm | 15 | ||
| threadeds1jis class 2 | m5x0.8 | ||
| outer dimensions - diameterd - mm | 15 | ||
| thread size (mm) | m5 x 0.8 |
