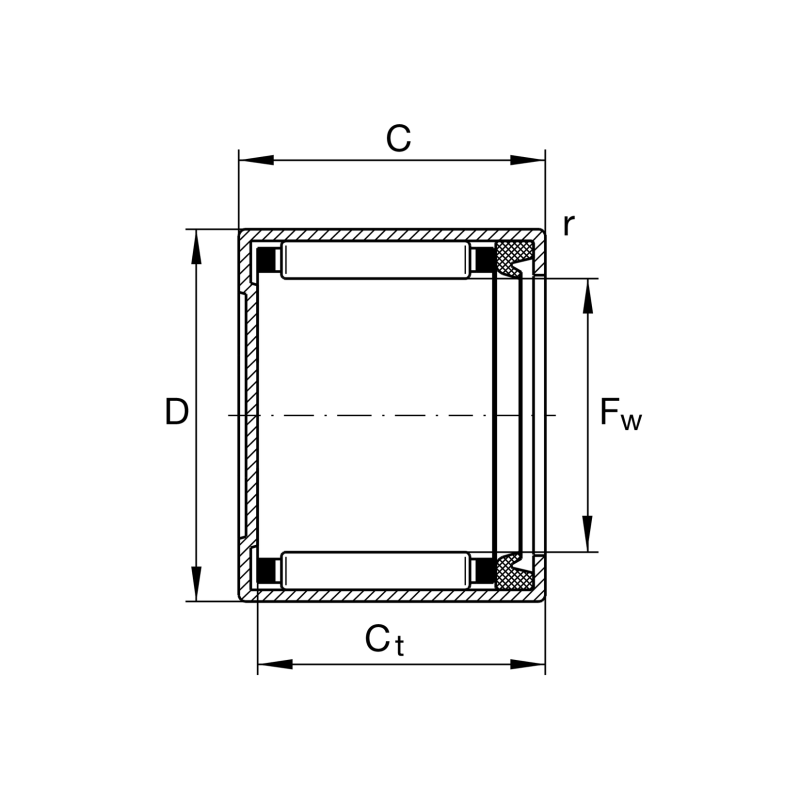

| Under roller diameter | Fw | 16 | mm |
| Width, outer ring | B | 14 | mm |
| Basic static load rating, radial | C0r | 9,700 | |
| Limiting speed | nG | 9,300 |
| Außen-Ø | D | 22 | mm |
| Basic dynamic load rating, radial | Cr | 7,600 | |
| Fatigue load limit, radial | Cur | 1,180 | |
| Limiting speed for grease lubrication | nG Grease | 9,300 |
| Minimum chamfer dimension | rmin | 0,80 | mm |
| Minimum width to base of drawn cup with closed end | Ct min | 11,30 | mm |
