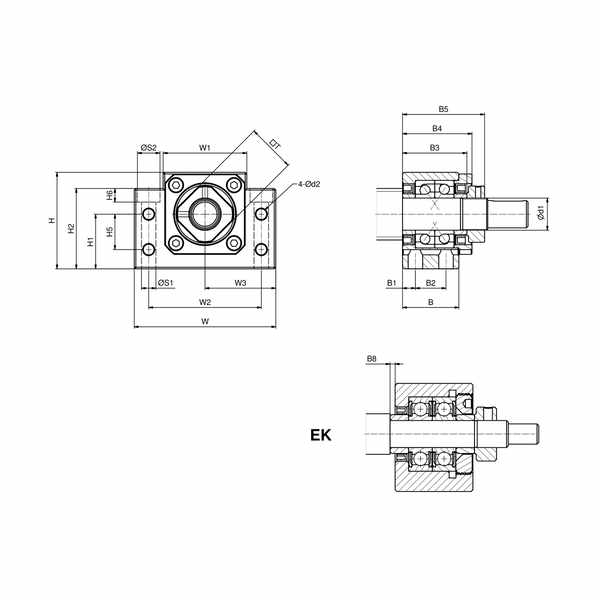

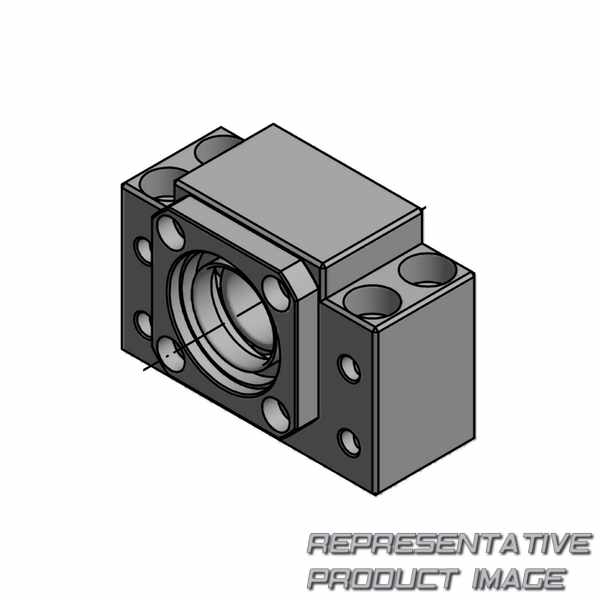

| Bezeichnung | BK10_C5 | ||
| Baureihe | BK | ||
| Material | Carbon steel | ||
| B2 | 13 mm | ||
| B4 | 30,15 mm | ||
| B8 | 0 mm | ||
| H1 | 22 mm | ||
| H5 | 15 mm | ||
| W | 60 mm | ||
| W1 | 34 mm | ||
| S1 | 6,6 mm | ||
| Square section T | 16 mm | ||
| D1 | 10 mm | ||
| Ca - Dynamic axial load rating | 5 kN | ||
| C0a - Static axial load rating | 2,33 kN | ||
| Maximum static axial load, tensile direction | 2 kN | ||
| Starting torque | 0,02 | ||
| KBr - Axial spring constant, pressure direction | 91 N/µm |
| Brand | SNR | ||
| Housing type | Block type | ||
| B1 | 6 mm | ||
| B3 | 26,5 mm | ||
| B5 | 34,5 mm | ||
| H | 39 mm | ||
| H2 | 32,50 | ||
| H6 | 5 mm | ||
| W3 | 30 mm | ||
| W2 | 46 mm | ||
| S3 | 10,8 mm | ||
| Contact angle | 30 ° | ||
| D2 | 5,5 mm | ||
| Cr - Dynamic load rating | 5 kN | ||
| C0r - Static load rating | 2,33 kN | ||
| Maximum static axial load, pressure direction | 2 kN | ||
| KBa - Axial spring constant, tensile direction | 91 N/µm |
