| Brand | SNR | ||

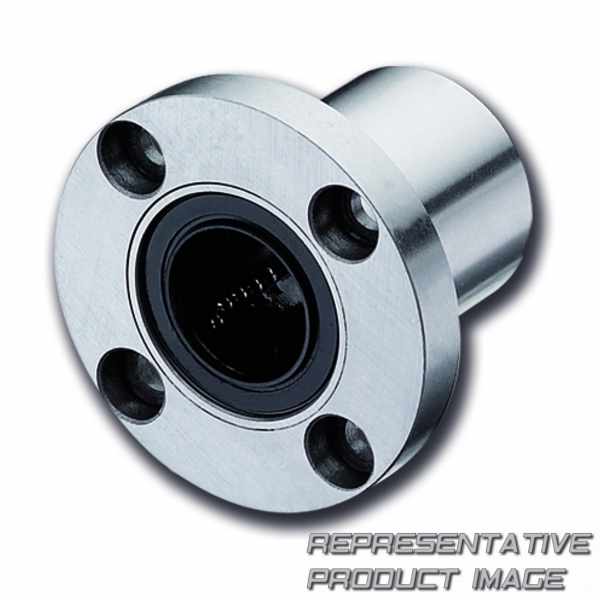

| Ball bushings category | Flange type ball bushings | ||
| Number of seals | 2 | ||
| Material Cage | St15 | ||

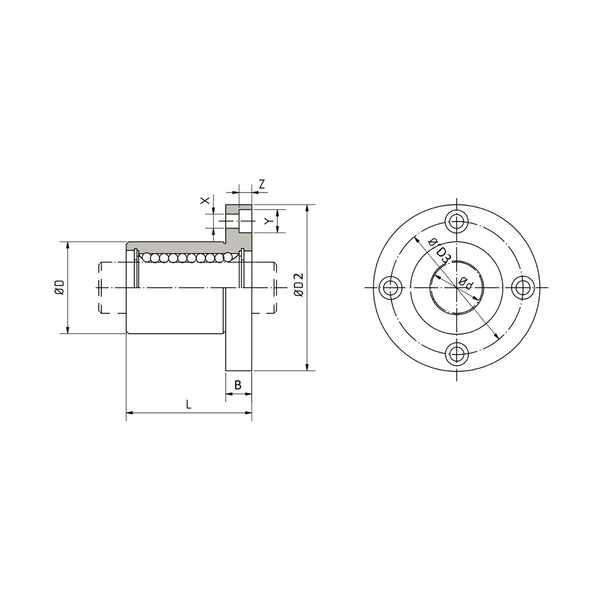

| L - Length | 165 mm | ||
| D2 - Diameter | 164 mm | ||
| X | 11 mm | ||
| Z | 11,1 mm | ||
| Number of ball rows | 6 | ||
| Cmax | 12,115 kN | ||
| C0max | 20,48 kN | ||
| Tmax - Max operating temperature | 110 °C |
| Design type | BBER | ||
| Standard | ISO dimensions | ||
| Material outer cylinder or steel segments | 100Cr6 | ||
| Initial greasing | No | ||
| L - Length tolerance | 0,3/-0,3 | ||
| D3 - Diameter | 142 mm | ||
| Y | 17 mm | ||
| Maximum eccentricity | 0,02 mm | ||
| Cmin | 9,465 kN | ||
| C0min | 16 kN | ||
| Tmin - Min operating temperature | -20 °C |
