| adjusting knob | stainless steel | ||
| body | aluminium | ||
| Ablauftyp | automatic drain | ||
| filter element | sintered stainless steel | ||
| flow flow dm3sec | 8 dm3/sec | ||
| gauge | no gauge | ||
| maximum inlet pressure imperial pressure psi | 250 psig | ||
| Medium | compressed air | ||
| operating temperature temperature celsius min to max range | -40 ... 80 °c | ||
| outlet pressure adjustment pressure bar min to max range | 0.25 ... 7 bar | ||

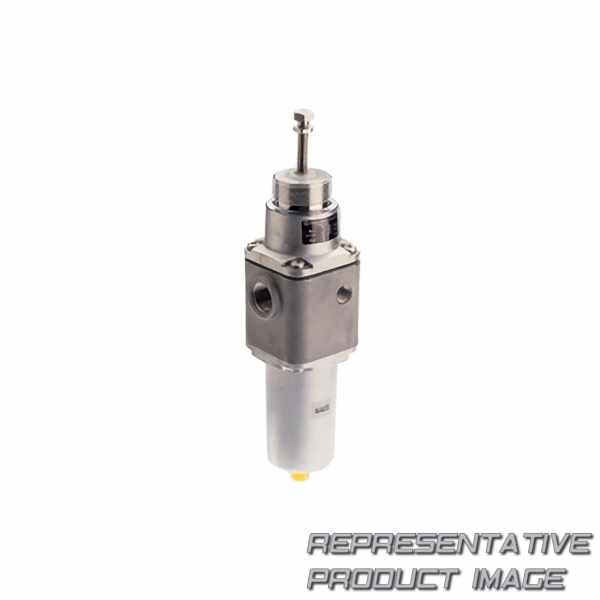

| range | b38 | ||
| relievingnonrelieving | relieving |
| adjusting screw | steel | ||
| bonnet | aluminium | ||
| elastomers | nitrile rubber | ||
| filter element m particlesize micron | 5 μm | ||
| flow flow dm3secbar | 8 dm3/(s.bar) dm3/sec | ||
| gauge port | 3/4" ptf | ||
| maximum inlet pressure pressure bar | 17 bar | ||
| operating temperature f temperature fahrenheit min to max range | -40 ... 175 °f | ||
| outlet pressure adjustment imperial pressure psig min to max range | 4 ... 100 psi | ||
| Anschlussgröße | 1/4" nptf | ||
| relief port | 1/8" ptf |
