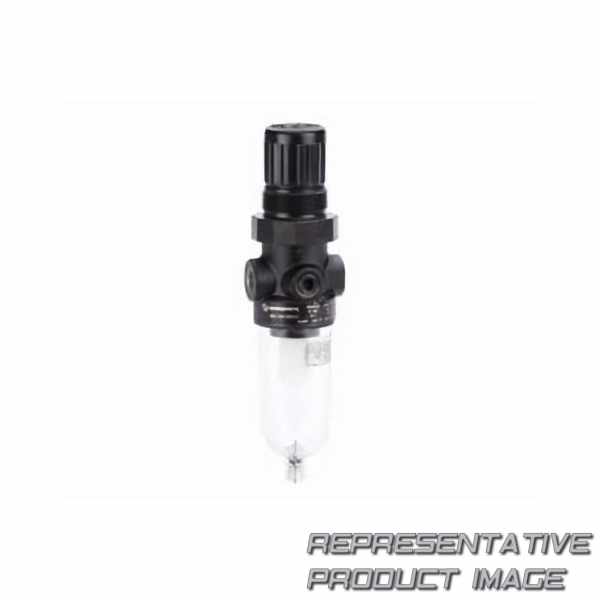

NORGREN B07-101-M3KG b07 series filter/regulator

Name: B07-101-M3KG NORGREN
Brand: NORGREN
SKU: 782013-de-eur
Price: 110.44 EUR
Availability: InStock

110,44 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	7 bar
Breite	41mm

Gewicht	260g

adjusting knob		acetal resin
body		zinc
bowl		polycarbonate
data performance shelf life		10 years
elastomers		nitrile rubber
filter element		sintered polypropylene
flow flow dm3sec		6.2 dm3/sec
gauge		no gauge
maximum inlet pressure imperial pressure psi		102 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 125 °f
outlet pressure adjustment imperial pressure psig min to max range		4 ... 100 psi
height length millimetre		38 mm
weight weight kilogram		0.26 kg
Anschlussgröße		g1/8
range		b07
Baureihe		07 series

Einstellung		knob
bonnet		acetal
bowl type		polymer
Ablauftyp		manual
eu country of origin		mexico
filter element m particlesize micron		40 μm
flow flow dm3secbar		6.2 dm3/(s.bar) dm3/sec
gauge port		rc1/8
maximum inlet pressure pressure bar		7 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
outlet pressure adjustment pressure bar min to max range		0.3 ... 7 bar
length length millimetre		164 mm
width length millimetre		41 mm
product style		ported
relievingnonrelieving		relieving
