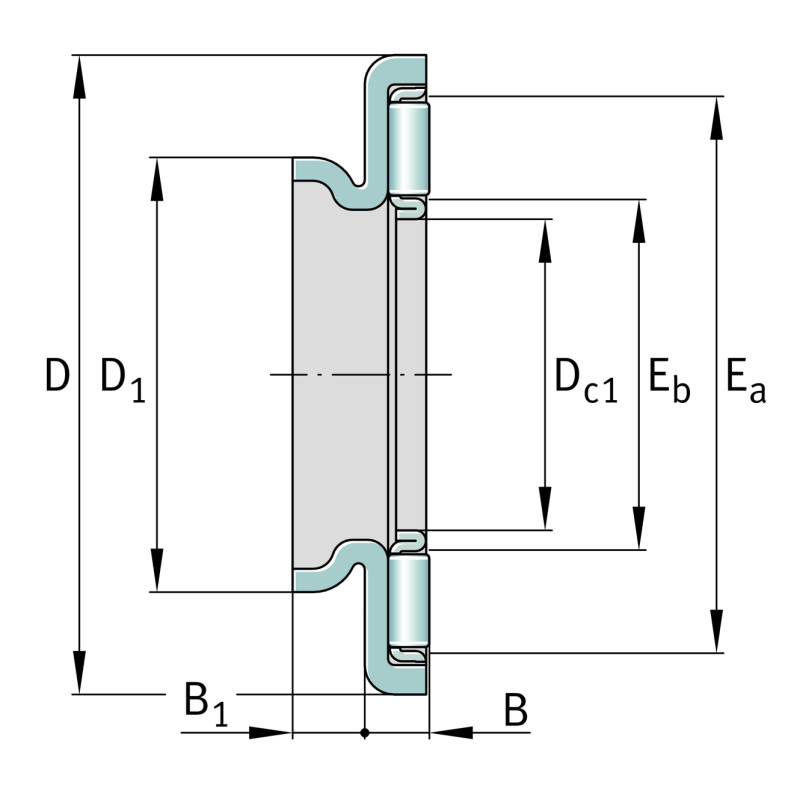

| Bore diameter cage | Dc1 | 35 | mm |
| Height bearing | B | 3,20 | mm |
| Outside diameter centering collar | D1 | 42 | mm |
| Basic dynamic load rating, axial | Ca | 17,900 | |
| Fatigue load limit, axial | Cua | 8,400 | |
| Reference speed | nϑr | 3,250 |
| Outside diameter bearing washer | D | 55 | mm |
| Height centering collar | B1 | 4 | mm |
| Raceway dimension | Ea | 39 | mm |
| Basic static load rating, axial | C0a | 81,000 | |
| Limiting speed | nG | 6,600 |
| Hersteller | Teilenummer |
|---|---|
| SKF | AXW35 (SKF) |
