| Color | blue | ||
| maximum operating pressure | 50 °c | ||
| media | compressed air, other fluids: contact us | ||
| body material | technical polymer | ||
| Produktfamilie | polymer blowguns | ||
| connection 1 thread size (metric) | g1/4 |
| specifications met | compliance for all blowguns: di: 97/23/ec (ped), di: 2002/95/ec (rohs), 2011/65/ec, di: 1907/2006 (reach) -- compliance for specific blowguns: di: 1910.242 (b) [osha] the static pressure must be less than 30 psi in case the nozzle becomes blocked. di: 1910.95 (b) [osha] the noise level must be less than 90 dba over 8 hours' exposure. di: 2003/10/ec regulation relating to exposure to noise, particularly with regard to risks to hearing. the noise level must be less than 87 dba. compliance of design: all designs and models of parker legris blowguns have been registered with the following numbers: 13 224/13 225/13 226. | ||
| Minimale Betriebstemperatur | -15 °c | ||
| industry application | manufacturing workshops, cleaning, blowing, mixing, ejection, cooling, packaging | ||

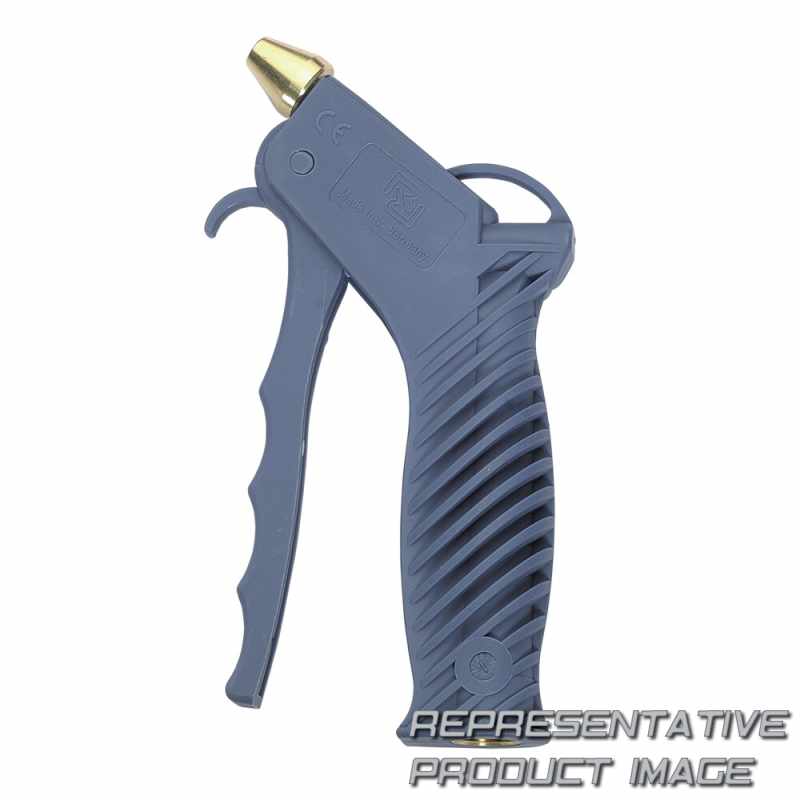

| shape | standard blowgun with fixed nozzle | ||
| connection 1 thread style | bspp |
