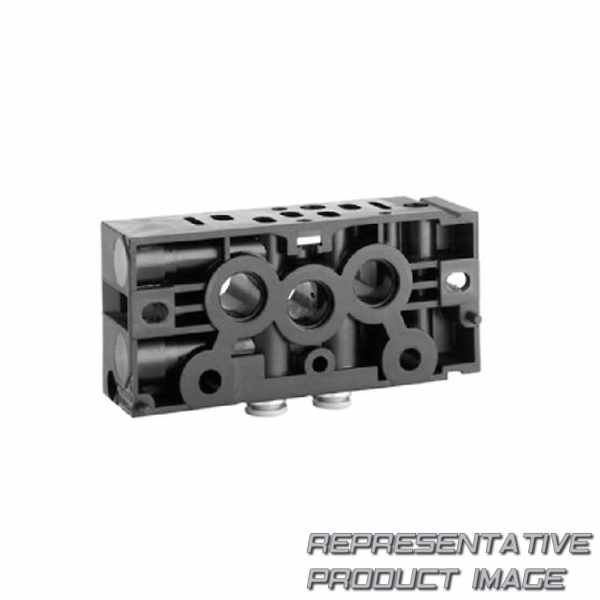

AVENTICS 8985121072

Name: 8985121072 AVENTICS
Brand: AVENTICS
SKU: 753946-de-eur
Price: 53.21 EUR
Availability: InStock

CD01-G1/8-DOWN

53,21 € ~~81,84 €~~ -34%

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	16 bar

Dichtung	acrylonitrile butadiene rubber

Typ		base plate
compressed air connection 2 / 4		g 1/8
exhaust (3,5)		with directional exhaust (3/5)
frame size		26 mm
working pressure min.		-0.95 bar
min. ambient temperature		-25 °c
min. medium temperature		-25 °c
Medium		compressed air
Rastermaß		27 mm
tightening torque for mounting screws		4 nm
seal material		acrylonitrile butadiene rubber

direction of pneumatic port (2,4)		down
exhaust type		ports separated
pilot control exhaust		with collective pilot air exhaust
Standards		iso 15407-1
working pressure max		16 bar
max. ambient temperature		70 °c
max. medium temperature		70 °c
Max. number of valve positions		1
mounting screw		with hexagon socket
Material base plate		polyamide fiber-glass reinforced
