| nominal pressure | 7.250 | ||
| wrench size | sw09 | ||
| surface protection | zinc-plated | ||
| Nennweite DN | 13 m | ||
| combination | no bv combination | ||
| lock | without lock | ||
| material code | steel-steel-pom-nbr | ||
| Standard | din iso 228 | ||
| Anschlussart | female thread | ||

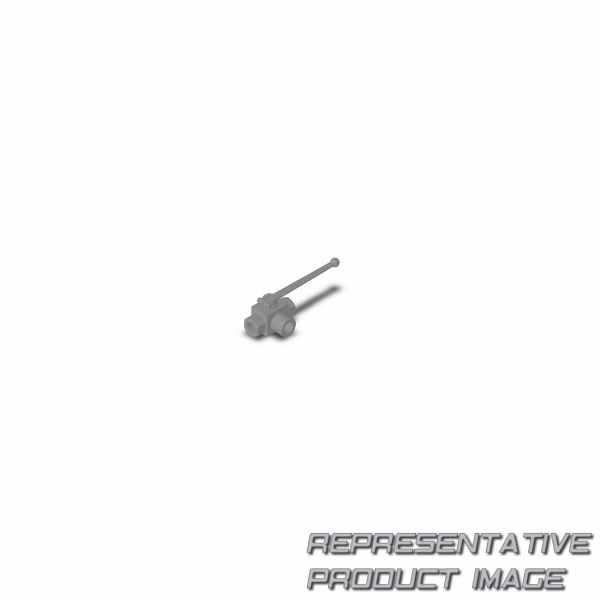

| object designation | khb3k-g1/2-l-1112-03x-a-sw09 |
| ball bore | l | ||
| design of lever | straight lever | ||
| actuation | hand lever | ||
| approval/test certificate | no approval | ||
| switch position monitoring | without switch pos. monitoring | ||
| fixing holes | without fixing holes | ||
| housing material, ball valve | steel | ||
| connection/flange designation | g | ||
| Konstruktiver Aufbau | khb3k | ||
| Part Number | 852.795 |
