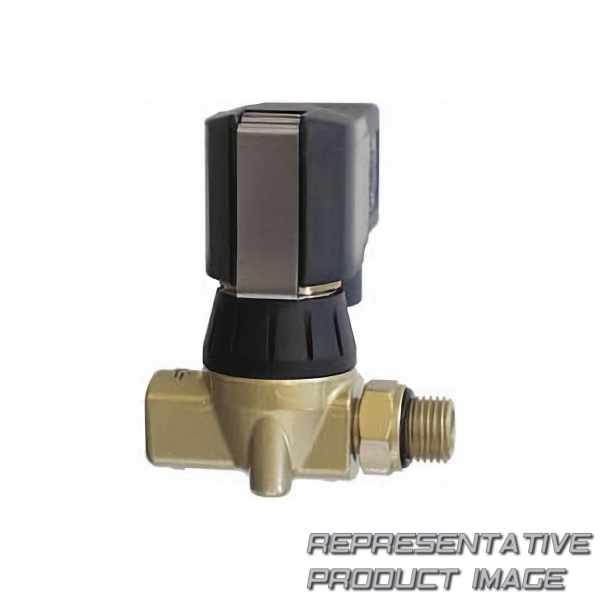

NORGREN 8466000.9101.02400 aluminium pilot valve for pressure operated valves

Name: 8466000.9101.02400 NORGREN
Brand: NORGREN
SKU: 790131-de-eur
Price: 197.59 EUR
Availability: InStock

197,59 €

14 Stk. mit 2 bis 5 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	1 ... 10 bar
Versorgungsspannung	24vdc

Dichtung	tpu
Gewicht	270g

airflow vacuum nlmin		31 nl/min
coil code		9.101
Elektrischer Anschluss		din en 175301-803
Strömungsrichtung		fixed venturi
flow flow litresperminute		0.33 l/m
inner parts		brass
Medium		compressed air
operating pressure pressure bar min to max range		1 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 140 °f
orifice metric		16 mm
power consumption power watt		8 w
Schutzklasse		en 60529 ip65
seat seal		tpu
solenoid protection class		ip65
switching time on time millisecond		8.5 ms
voltage		24vdc

body		aluminium
data performance shelf life		3 years
eu country of origin		germany
flow flow dm3sec		0.01 dm3/sec
fluid temperature temperature celsius min to max range		-10 ... 60 °c
maximum fluid temperature temperature celsius		60 °c
mil spec		available on request
operating pressure psi pressure psi min to max range		15 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 60 °c
Anschlussgröße		g1/4
product style		pilot
range		84.660
socket		wireable plug
switching time off time millisecond		30.4 ms
valve operation		3/2
