| max. medium temperature | 80 °c | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| tolerance in 0° position not under pressure max. | 3 ° | ||
| angle of rotation max. | 90 ° | ||
| stroke/10° angle of rotation | 2.6 mm | ||
| Dämpfung | adjustable | ||
| max. play (radial) | 1.3 ° | ||
| rotation angle setting | -5° / +5° | ||
| axis diameter | 22 mm | ||

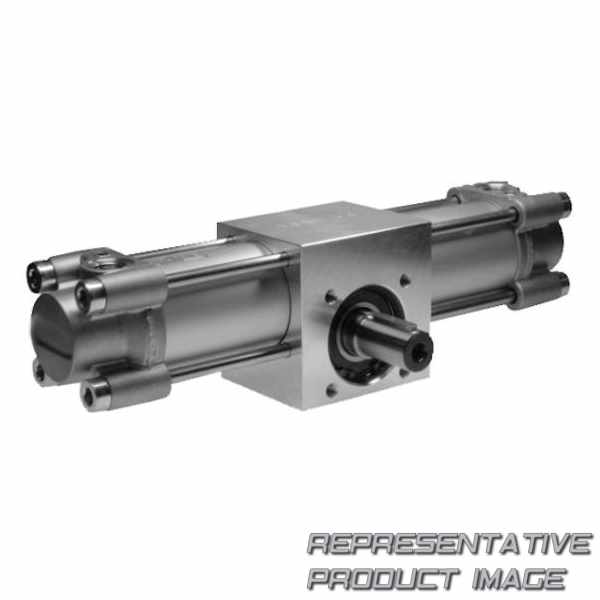

| rotary compact module version | double piston with rack | ||
| compressed air connection | g 1/4 |
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 2 bar | ||
| tolerance in 0° position not under pressure min. | -3 ° | ||
| angle of rotation min. | 0 ° | ||
| Dämpfungswinkel | 65 ° | ||
| theoretical torque | 14 nm | ||
| Drehrichtung | counterclockwise | ||
| theoretical torque at | 6,3 bar | ||
| frame size | trr-50 | ||
| magnetic piston | with magnetic piston | ||
| Diameter | 50 mm |
