| Material number of filter support | 1.4409/CF3M(316L) | ||
| Material number of drain screw | 1.4404/316L | ||
| Pneumatischer Anschluss 2 | G1/2 | ||
| Pressure gauge connection | G1/4 | ||
| Produktgewicht | 805 g | ||
| Mediumstemperatur | -60 °C ... 80 °C | ||
| Lagertemperatur | -60 °C ... 80 °C | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [-:4:-] Inert gases | ||
| Standard nominal flow rate | 1.750 l/min | ||
| Max. Druckhysterese | 0,2 bar | ||
| Betriebsdruck | 1 bar ... 20 bar | ||
| Symbol | 00991586 | ||
| Max. condensate volume | 13 ml | ||

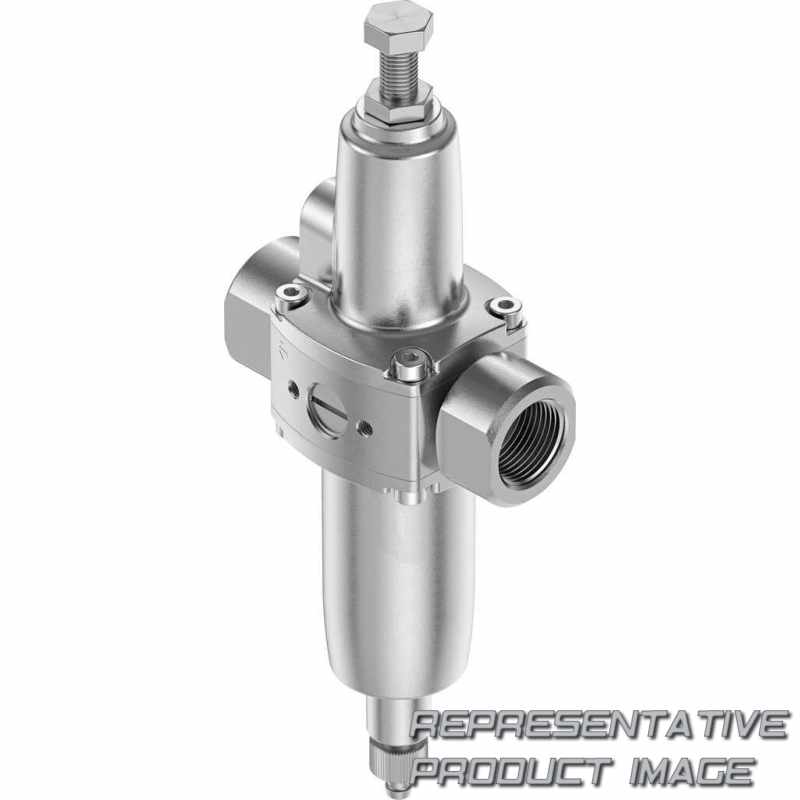

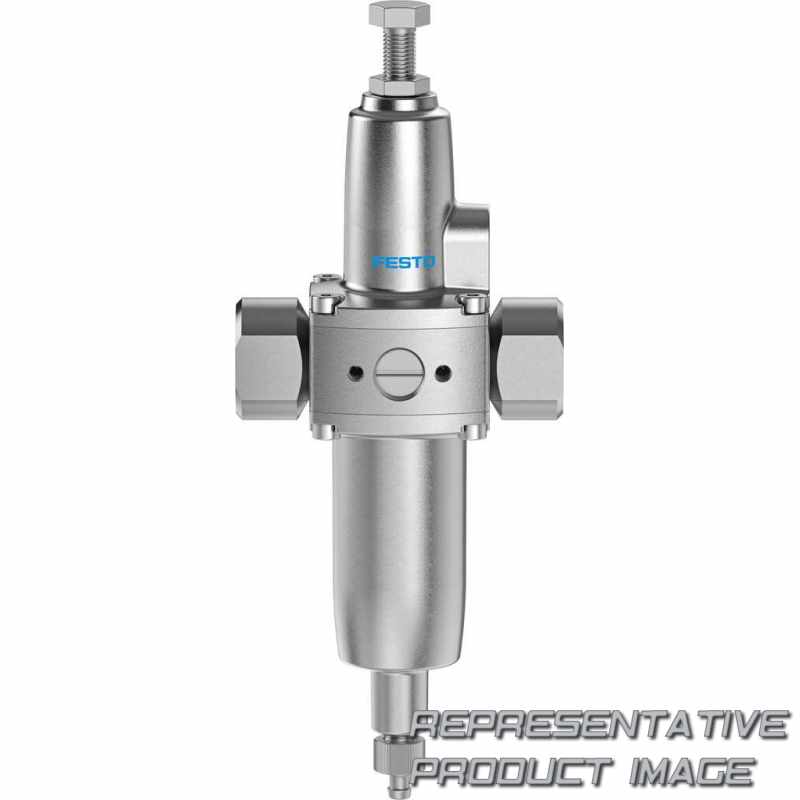

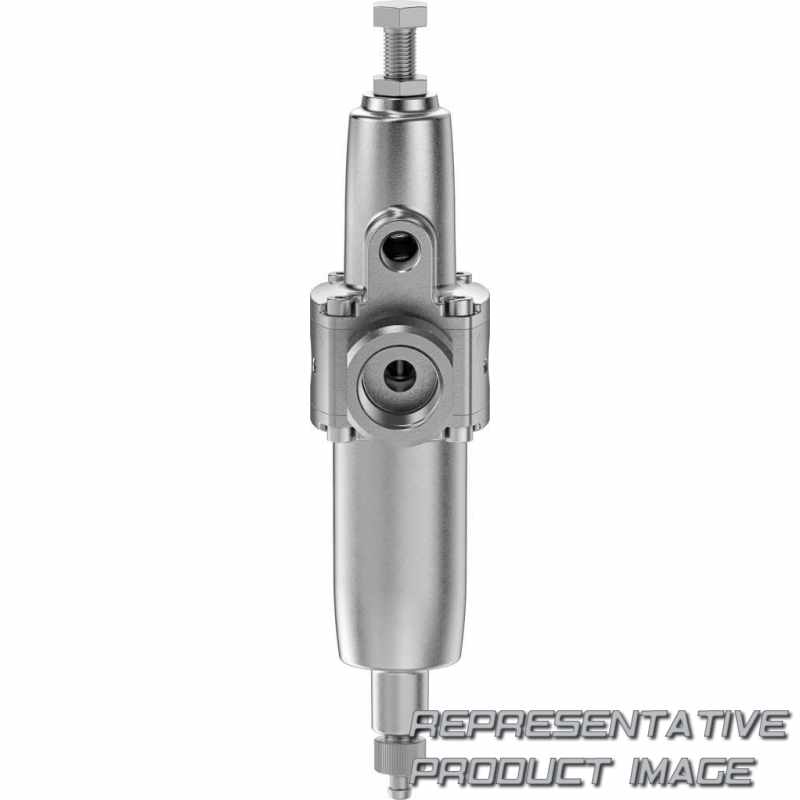

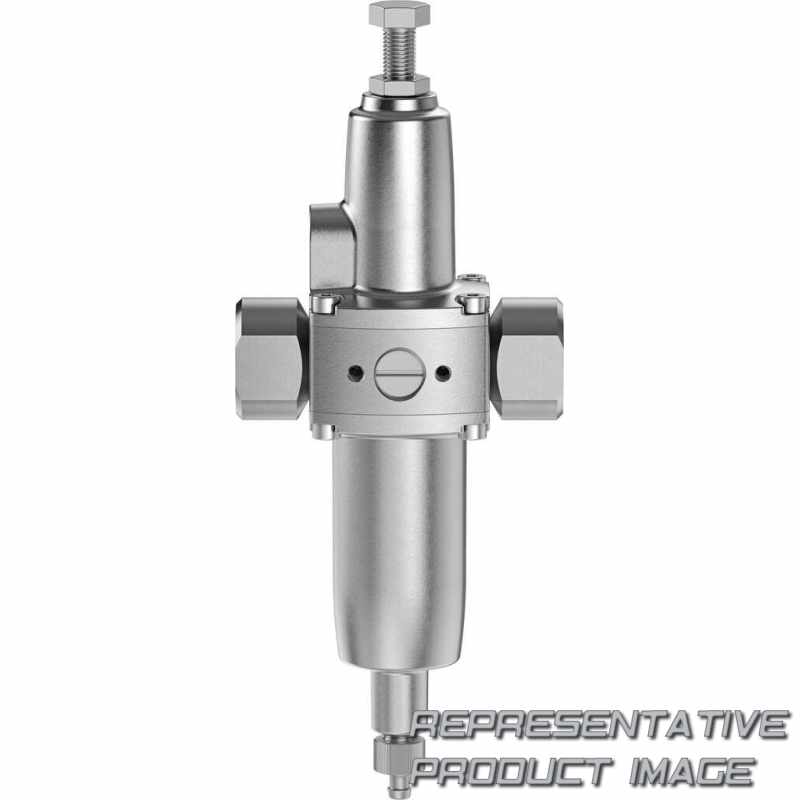

| Konstruktiver Aufbau | Filter regulator without pressure gauge | ||
| Filterfeinheit | 40 µm | ||
| Actuator lock | Adjusting screw with lock | ||
| Baugröße | 44 | ||
| Werkstoff Schale | Stainless steel casting | ||
| Werkstoffnummer Gehäuse | 1.4409/CF3M(316L) | ||
| Material number of filter | 1.4404/316L | ||
| Werkstoff Feder | High-alloy stainless steel | ||
| Material mounting bracket | High-alloy stainless steel |
| Material filter carrier | Stainless steel casting | ||
| Material of drain screw | High-alloy stainless steel | ||
| Pneumatischer Anschluss 1 | G1/2 | ||
| Befestigungsart | In-line installation Via mounting kit Either: | ||
| Umgebungstemperatur | -60 °C ... 80 °C | ||
| Luftreinheitsklasse am Ausgang | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Explosionsschutz | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| Max. standard flow rate | 2.020 l/min | ||
| Druckregelbereich | 0,5 bar ... 12 bar | ||
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Prepared for G1/4 | ||
| Controller function | Via primary pressure compensation With secondary venting | ||
| Entspricht Norm | NACE MR0175/ISO 15156 (housing and bowl) | ||
| Kondensatablass | Manually rotating | ||
| Einbaulage | Vertical +/-5° | ||
| Baureihe | P | ||
| Material number of bowl | 1.4409/CF3M (316L) | ||
| Werkstoff Regulierschraube | High-alloy stainless steel | ||
| Werkstoff Gehäuse | Stainless steel casting | ||
| Material filter | High-alloy stainless steel | ||
| Werkstoff Dichtungen | CR NBR VMQ | ||
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant |
