| Material toothed belt | Polychloroprene with glass fibre | ||
| Material pulleys | High-alloy stainless steel | ||
| Material guide slide | Tempered steel | ||
| Material cover tape | Stainless steel strip | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Interface code, actuator | T42 | ||
| Grundgewicht bei 0 mm Hub | 1.775 g | ||
| Weight of slide | 139 g | ||
| Bewegte Masse | 482 g | ||
| Mass moment of inertia JO | 0,88 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,085 kgcm² | ||
| Leerlaufantriebsmoment | 0,194 Nm | ||
| Max. Moment Mz | 31,8 Nm | ||
| Max. Moment Mx | 29,1 Nm | ||
| Max. Kraft Fz | 1.800 N | ||
| Max. drive torque | 1,49 Nm | ||
| 2nd moment of area Iy | 441.000 mm⁴ | ||
| Schutzart | IP40 | ||
| Eignung zur Produktion von Li-Ionen Batterien | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Einschaltdauer | 100% | ||
| Max. Geschwindigkeit | 1,5 m/s | ||
| Functional principle of measuring system | Incremental | ||
| Type of motor | Stepper motor Servo motor | ||
| Führung | Recirculating ball bearing guide | ||
| Toothed-belt pitch | 3 mm | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 1.000 mm |
| Material slide | Die-cast aluminium | ||
| Material guide rail | Tempered steel | ||
| Material drive cover | Painted die cast aluminium | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Gewichtszuschlag pro 10 mm Hub | 43 g | ||
| Produktgewicht | 6.027 g | ||
| Bewegte Masse bei 0 mm Hub | 482 g | ||
| Feed constant | 78 mm/U | ||
| Mass moment of inertia JL per kg of working load | 1,541 kgcm² | ||
| Torsional mass moment of inertia It | 29.800 mm⁴ | ||
| Max. feed force Fx | 120 N | ||
| Max. Moment My | 31,8 Nm | ||
| Max. idle running transfer resistance | 15,6 N | ||
| Max. Kraft Fy | 600 N | ||
| 2nd moment of area Iz | 542.000 mm⁴ | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Reinraumklasse | Class 7 according to ISO 14644-1 | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Wiederholgenauigkeit | ±0.1 mm | ||
| Max. acceleration | 15 m/s² | ||
| Symbol | 00991212 | ||

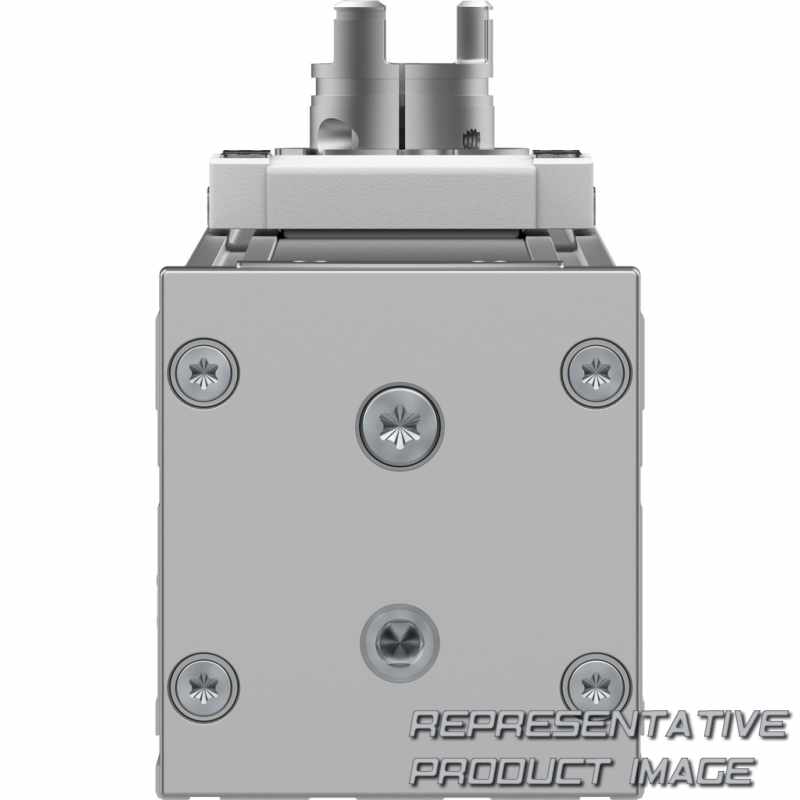

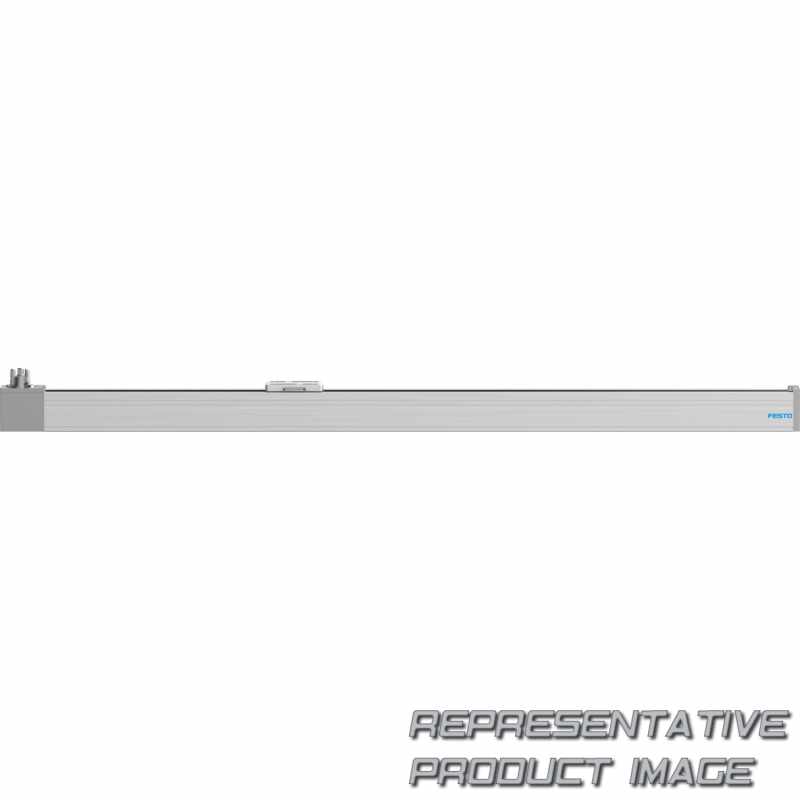

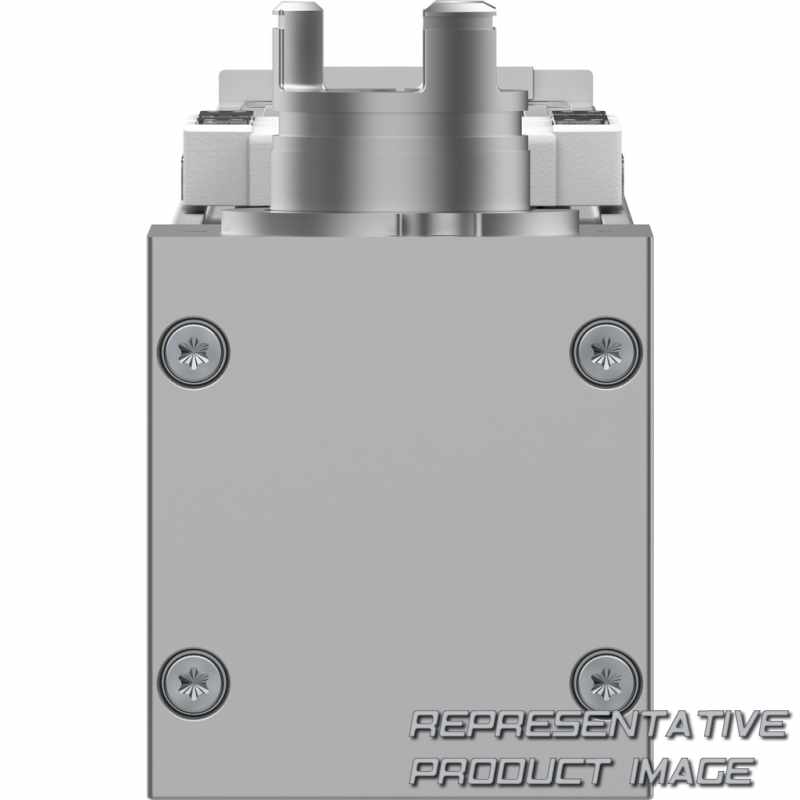

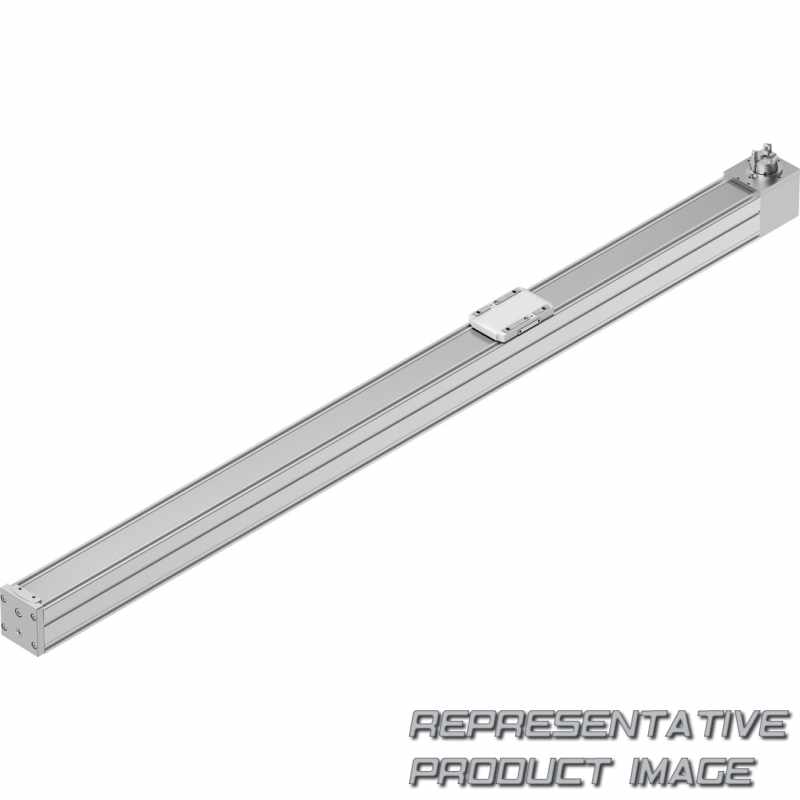

| Konstruktiver Aufbau | Electromechanical linear axis With toothed belt | ||
| Einbaulage | optional | ||
| Toothed-belt stretch | 0,124 % | ||
| Baugröße | 60 | ||
| Effective diameter of drive pinion | 24,83 mm |
