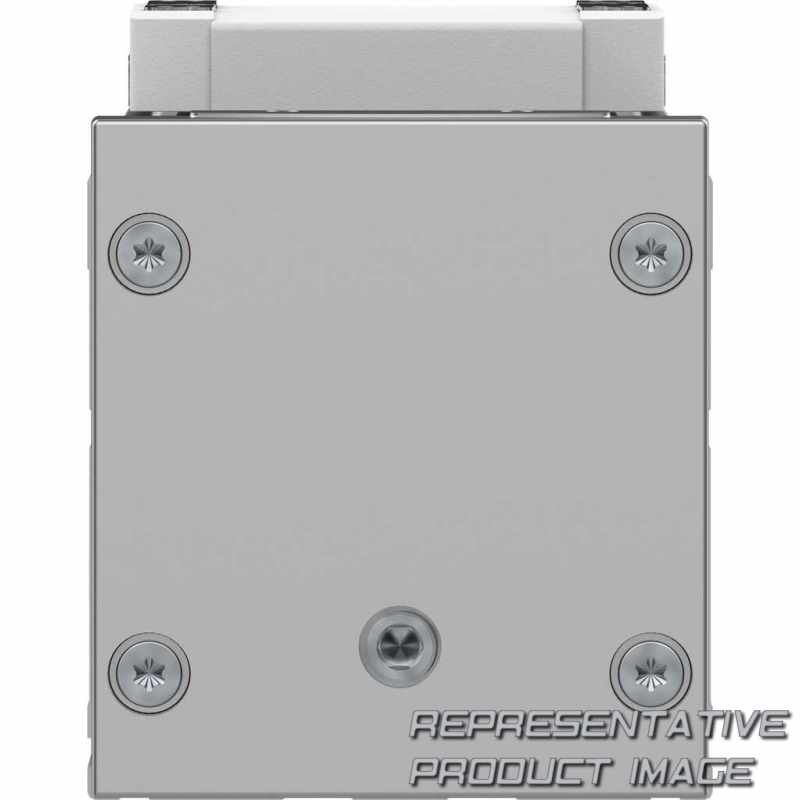

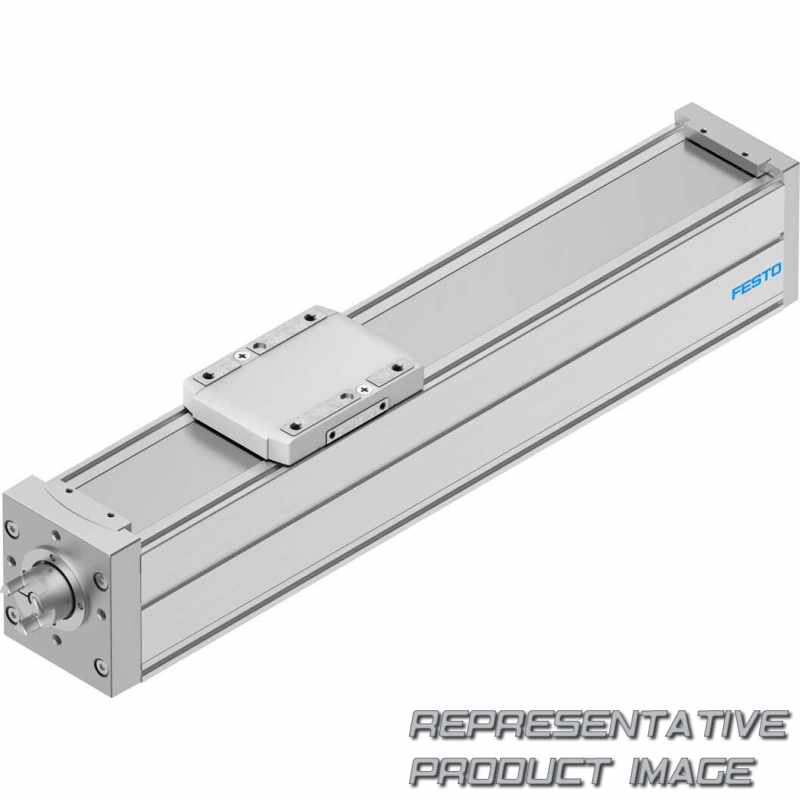

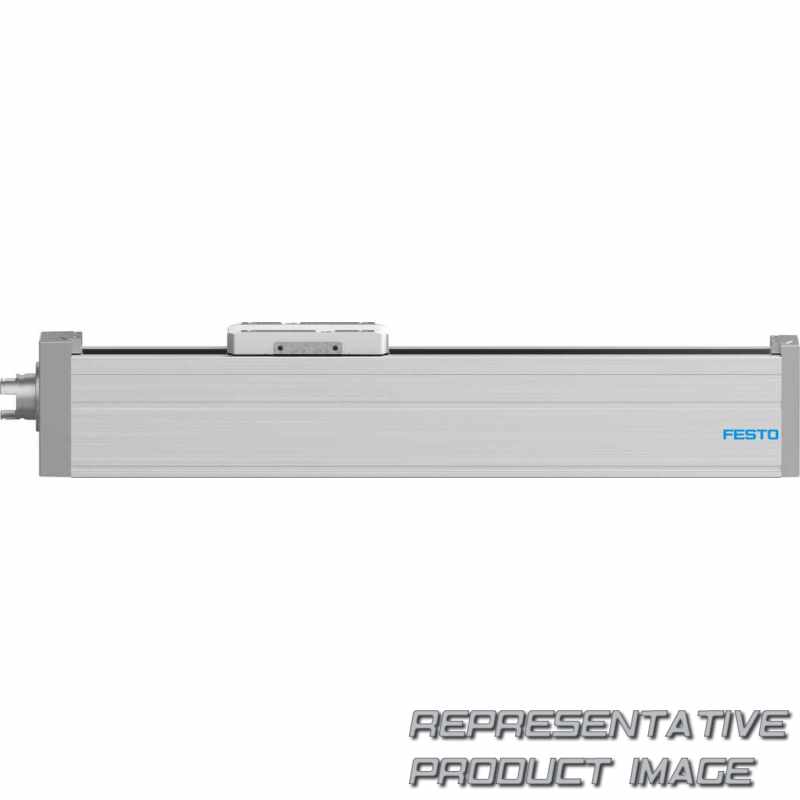

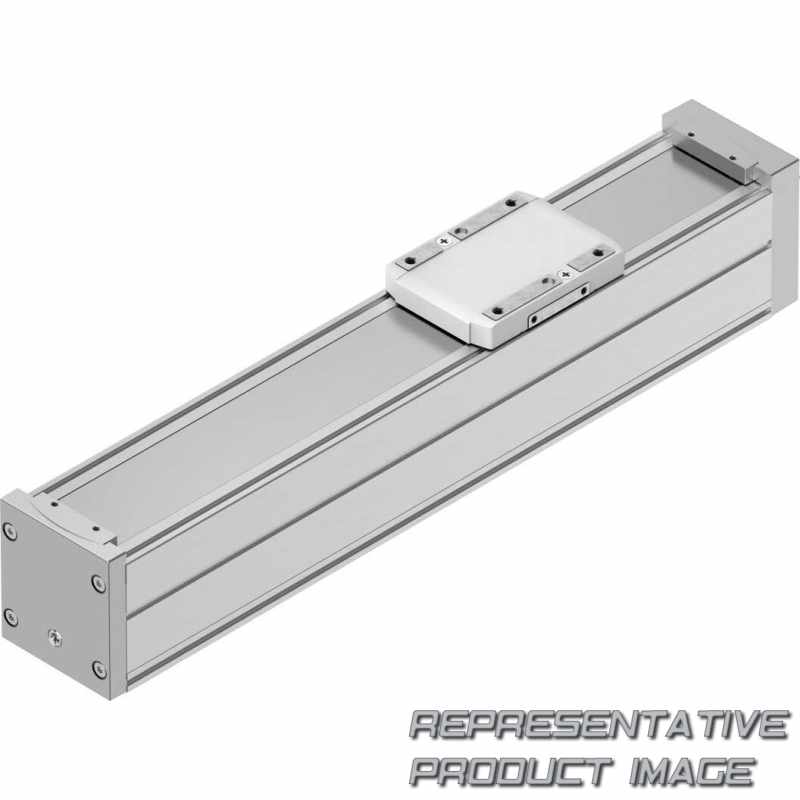

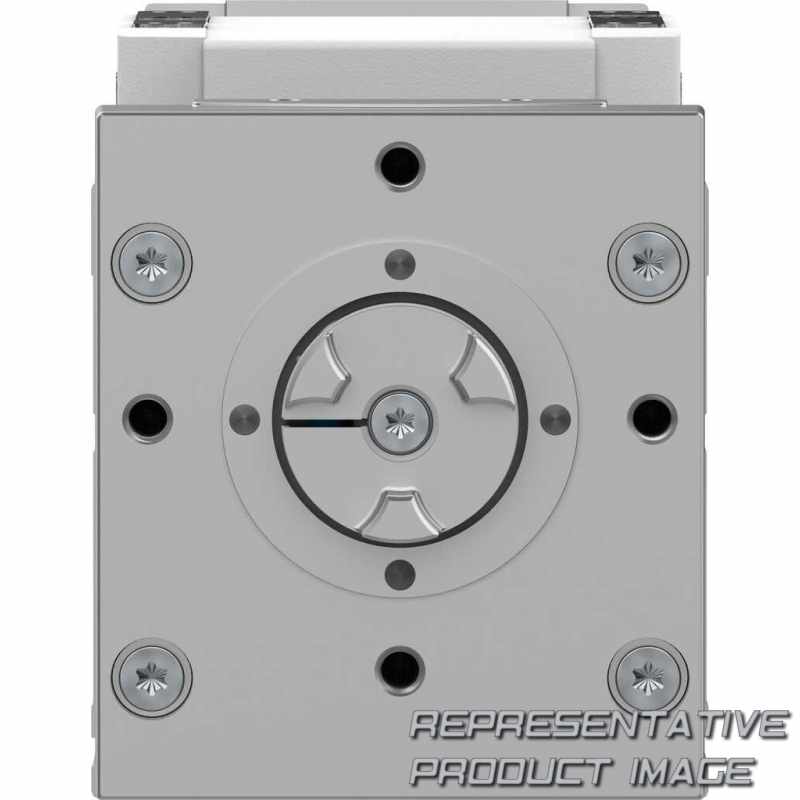

| Material spindle | Steel | ||
| Material slide | Die-cast aluminium | ||
| Material guide slide | Steel | ||
| Material cover tape | High-alloy stainless steel | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Interface code, actuator | T46 | ||
| Dynamic deflection (moving load) | 0.05% of the axis length, max. 0.5 mm | ||
| Bewegte Masse | 978 g | ||
| Mass moment of inertia JO | 0,079 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,353 kgcm² | ||
| Max. feed force Fx | 350 N | ||
| My at theoretical life value of 100 km (only guide consideration) | 207 Nm | ||
| Max. Moment Mz | 56,2 Nm | ||
| Max. Moment Mx | 59,8 Nm | ||
| Fy at theoretical life value of 100 km (only guide consideration) | 3.312 N | ||
| Max. Kraft Fy | 900 N | ||
| Idle torque at vmax | 0,396 Nm | ||
| 2nd moment of area Iy | 1.370.000 mm⁴ | ||
| Schutzart | IP40 | ||
| Eignung zur Produktion von Li-Ionen Batterien | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Wiederholgenauigkeit | ±0.01 mm | ||
| Drehzahl max. | 3.750 rpm | ||
| Symbol | 00991211 | ||
| Type of motor | Stepper motor Servo motor | ||
| Führung | Recirculating ball bearing guide | ||
| Spindle pitch | 16 mm/U | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 200 mm |
| Material spindle nut | Steel | ||
| Material guide rail | Steel | ||
| Material drive cover | Painted die cast aluminium | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Static deflection (load in standstill) | 0.1% of the axis length | ||
| Gewichtszuschlag pro 10 mm Hub | 88 g | ||
| Feed constant | 16 mm/U | ||
| Mass moment of inertia JL per kg of working load | 0,065 kgcm² | ||
| Torsional mass moment of inertia It | 90.500 mm⁴ | ||
| Mz at theoretical life value of 100 km (only guide consideration) | 207 Nm | ||
| Mx at theoretical life value of 100 km (only guide consideration) | 220 Nm | ||
| Max. Moment My | 56,2 Nm | ||
| Fz at theoretical life value of 100 km (only guide consideration) | 9.936 N | ||
| Max. Kraft Fz | 2.700 N | ||
| Idle torque at vmin | 0,095 Nm | ||
| 2nd moment of area Iz | 1.660.000 mm⁴ | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Reinraumklasse | Class 7 according to ISO 14644-1 | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Max. Geschwindigkeit | 1 m/s | ||
| Max. acceleration | 15 m/s² | ||
| Spindle type | Ball screw drive | ||
| Konstruktiver Aufbau | Electromechanical linear axis With ball screw | ||
| Einbaulage | optional | ||
| Spindle diameter | 16 mm | ||
| Baugröße | 80 |
