797TC-10 Parker Hannifin

PARKER 797TC-10

Name: 797TC-10 PARKER
Brand: PARKER
SKU: 575408-de-eur
Price: 127.88 EUR
Availability: InStock

127,88 € /m ~~207,80 €~~ /m -38%

9.000 mm mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

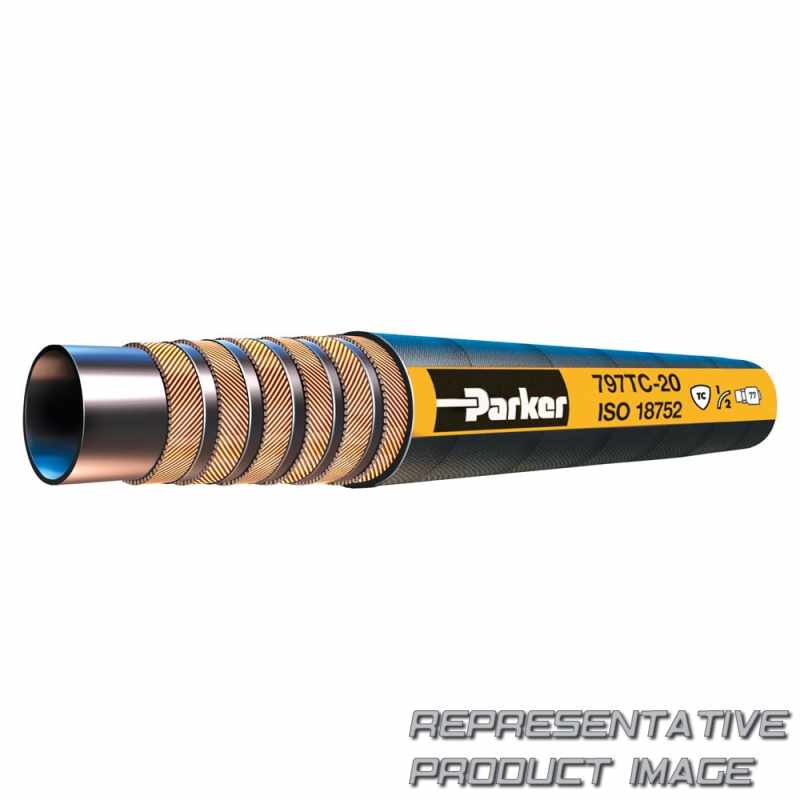

The 797 GlobalCore hose is a 6,000 PSI hydraulic constant working pressure hose designed with Compact Spiral Technology to deliver consistency and reliability.

max. Druck	6000 psi, 42 mpa

Gewicht	800g

Technical data

hose i.d. (size)		-10
Gewicht		0.80 kg/m, 0.54 lb/ft
media		hydraulic fluids, lubricants
nominal hose inside diameter		16
maximum operating pressure		6000 psi, 42 mpa
hose reinforcement material		4 or 6 spiral steel wires
cover color		black
Maximale Betriebstemperatur		257 °f, 125 °c
compatible fitting		77 series

hose cover type		toughcover
Minimale Betriebstemperatur		-40 °f, -40 °c
hose inside diameter		5/8 inch, 16 mm
hose outside diameter		0.94 inch, 23.9 mm
hose inner tube material		proprietary synthetic rubber
cover material		synthetic rubber abrasion resistant
minimum bend radius		4-1/2 inch, 115 mm
specifications met		iso 18752
Anwendung		petroleum base hydraulic fluids & lubricating oils
