| connection 1 thread size (metric) | g1/4 | ||

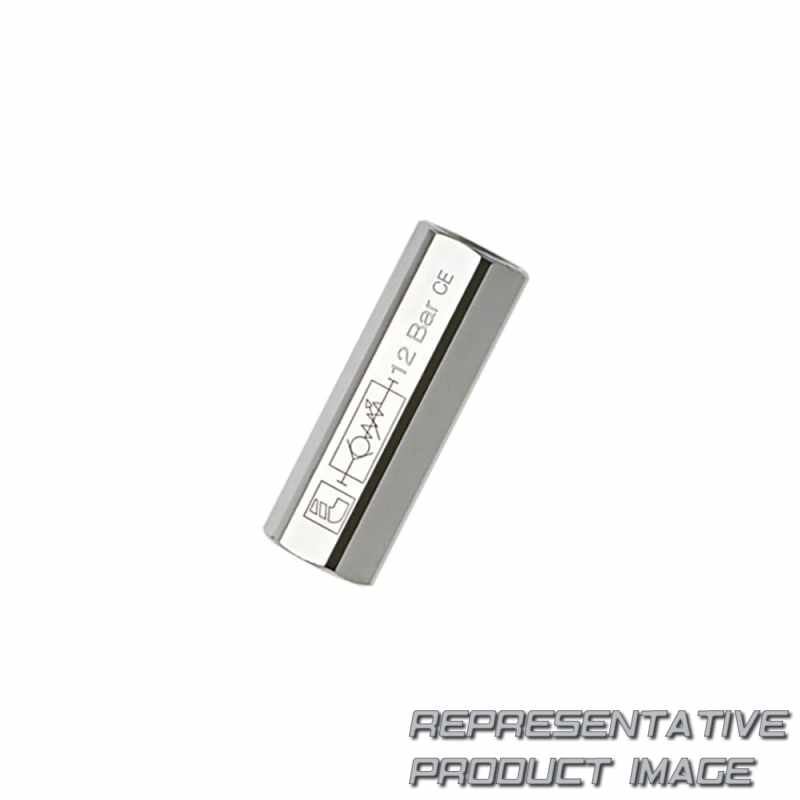

| shape | adjustable check valve female | ||
| o-ring material | fkm | ||
| Minimale Betriebstemperatur | -20 °c | ||
| quantity per box | 10 | ||
| Anwendung | printing, machine tools, food process, petrochemical, textile, automotive process, chemical | ||
| specifications met | di: 2002/95/ec (rohs), rg: external components: 21cfr (fda), (seal: § 177.2600, nickel: §184.1537, grease: nsf h1), rg: 1935/2004 (external surface fl ow ? 0.02 litre per hour), di: 2006/42/ec (external surface ra < 0.8 µm), rg: 1907/2006 (reach) |
| connection 1 thread style | bspp | ||
| nut material | brass | ||
| maximum operating pressure | 12 barg | ||
| Maximale Betriebstemperatur | 80 °c | ||
| Gewicht | 0.073 kg | ||
| media | compressed air |
