| motors | 3.02 fixed motor | ||
| output shaft | ab : 15 tooth 16/32 spline, shaft extension 46 [1.81] | ||
| drain ports size & location | 8 : .750-16 unf-2b sae o-ring port - center rear of unit | ||
| displacement options | 0 : as given in code title | ||
| paint | 0a : primer per spec 209-13a | ||
| design code | b : valve plate |

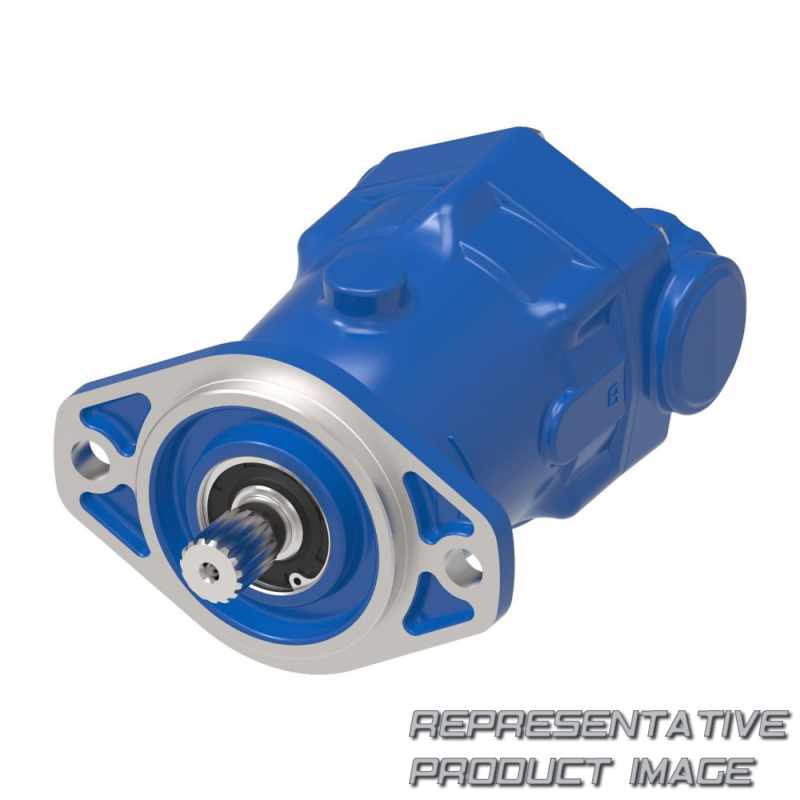

| code title | aak : 49.5 cm3/r [3.02 in3/r] fixed displacement axial piston motor | ||
| main ports size & location | j : 1.0625-12 un-2b sae o-ring ports - top | ||
| auxiliary mounting features (rear) | 0 : none | ||
| special features | ag : shuttle valve and back-pressure valve set at 15.2-17.2 bar [220-250 lbf/in2], 6.20 bar [90.0 lbf/in2] static seal with adaptor, and 2x m12 x 1.5 metric o-ring diagnostic ports | ||
| identification | 0 : standard |
