| motors | 3.02 fixed motor | ||
| output shaft | ab : 15 tooth 16/32 spline, shaft extension 46 [1.81] | ||
| drain ports size & location | j : .5625-18 unf-2b sae o-ring port - upper rear of unit | ||
| displacement options | 0 : as given in code title | ||
| paint | 0a : primer per spec 209-13a | ||
| design code | b : valve plate |

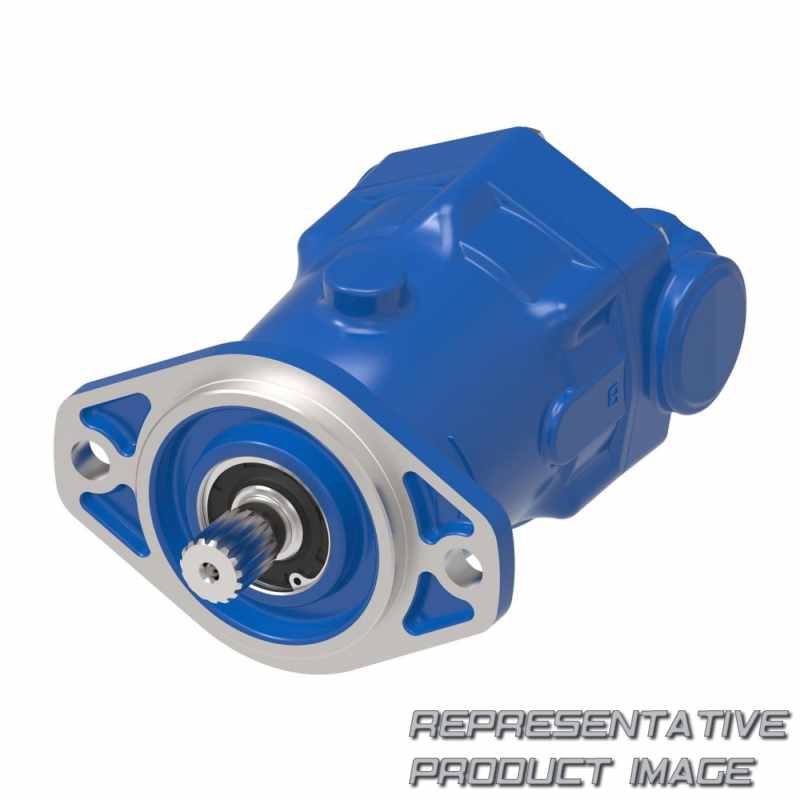

| code title | aak : 49.5 cm3/r [3.02 in3/r] fixed displacement axial piston motor | ||
| main ports size & location | a : 1.0625-12 un-2b sae o-ring ports - side | ||
| auxiliary mounting features (rear) | 0 : none | ||
| special features | 00 : no special features | ||
| identification | 0 : standard |
