| design code | b : valve plate | ||
| paint | 0a : primer per spec 209-13a | ||
| displacement options | 0 : as given in code title | ||
| drain ports size & location | b : .750-16 unf-2b sae o-ring port - top & bottom, bottom plugged (housing) | ||
| output shaft | ad : straight shaft, diameter 28.58 [1.125], keyway 7.9 x 32.5 [.31 x 1.28], shaft extension 46 [1.81] (key included) | ||
| motors | pst mtr asy rpls 74418-dbp |
| identification | 0 : standard | ||
| special features | 00 : no special features | ||
| auxiliary mounting features (rear) | 0 : none | ||
| main ports size & location | j : 1.0625-12 un-2b sae o-ring ports - top | ||

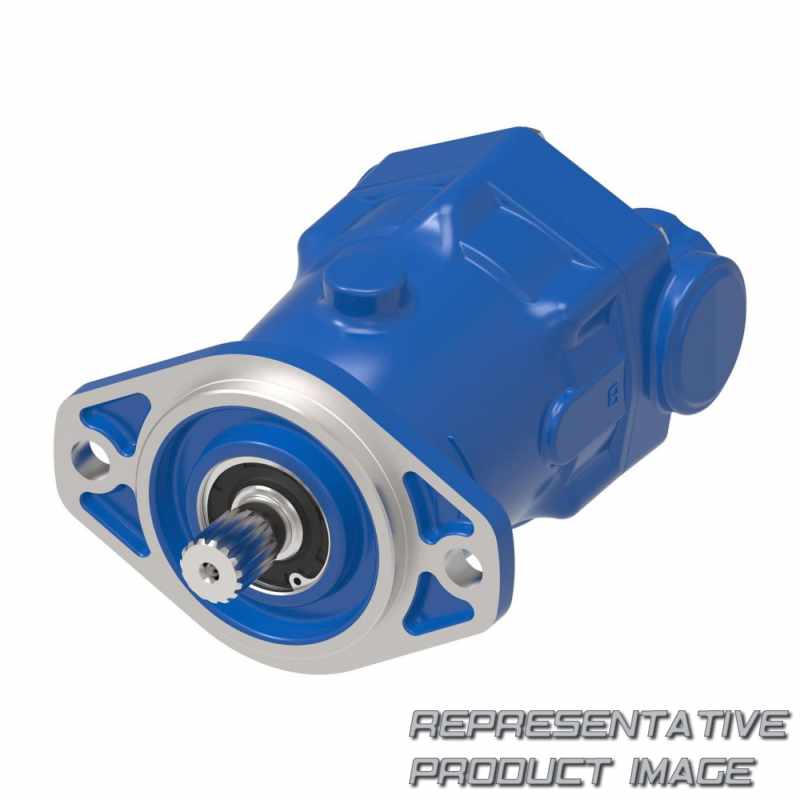

| code title | aaj : 40.6 cm3/r [2.48 in3/r] fixed displacement axial piston motor |
