| motors | 2.48 cid fixed piston mo tor assy | ||
| output shaft | bf : straight shaft, diameter 22.23 [.875], keyway 6.4 x 55.6 [.25 x 2.19], shaft extension 71.4 [2.81] (key included) | ||
| drain ports size & location | b : .750-16 unf-2b sae o-ring port - top & bottom, bottom plugged (housing) | ||
| displacement options | a : 32.9 cm3/r [2.01 in3/r] modified from a 40.6 cm3/r [2.48 in3/r] | ||
| paint | 00 : none | ||
| design code | b : valve plate |

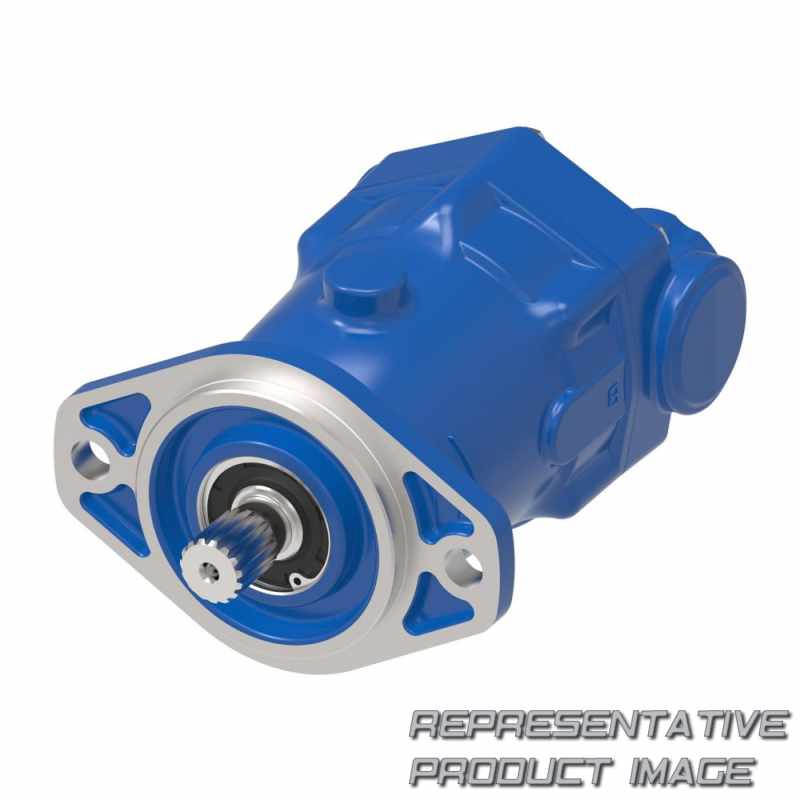

| code title | aaj : 40.6 cm3/r [2.48 in3/r] fixed displacement axial piston motor | ||
| main ports size & location | d : 1.3125-12 un-2b sae o-ring ports - top | ||
| auxiliary mounting features (rear) | 0 : none | ||
| special features | ck : unidirectional lh (ccw) rotation with anticavitational check valve with viton drive shaft seal | ||
| identification | 0 : standard |
