| motors | aajabba0aabau0b | ||
| output shaft | ab : 15 tooth 16/32 spline, shaft extension 46 [1.81] | ||
| drain ports size & location | a : .750-16 unf-2b sae o-ring port - top (housing) | ||
| displacement options | a : 32.9 cm3/r [2.01 in3/r] modified from a 40.6 cm3/r [2.48 in3/r] | ||
| paint | au : flat black per spec 209-13au | ||
| design code | b : valve plate |

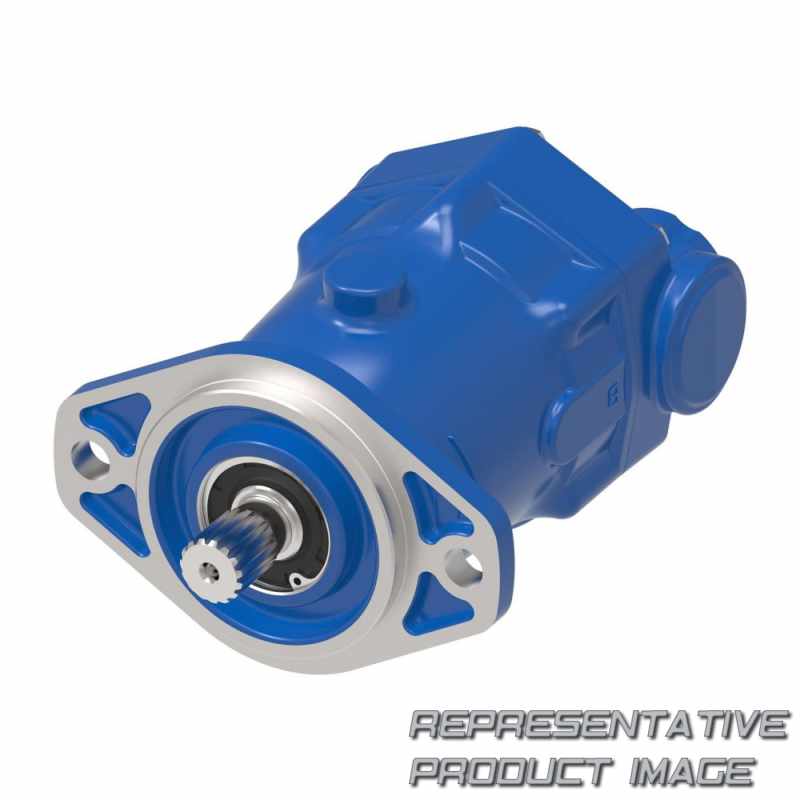

| code title | aaj : 40.6 cm3/r [2.48 in3/r] fixed displacement axial piston motor | ||
| main ports size & location | b : 1.3125-12 un-2b sae o-ring ports - side | ||
| auxiliary mounting features (rear) | 0 : none | ||
| special features | ab : rotating kit with small land | ||
| identification | 0 : standard |
